▶ Product Introduction

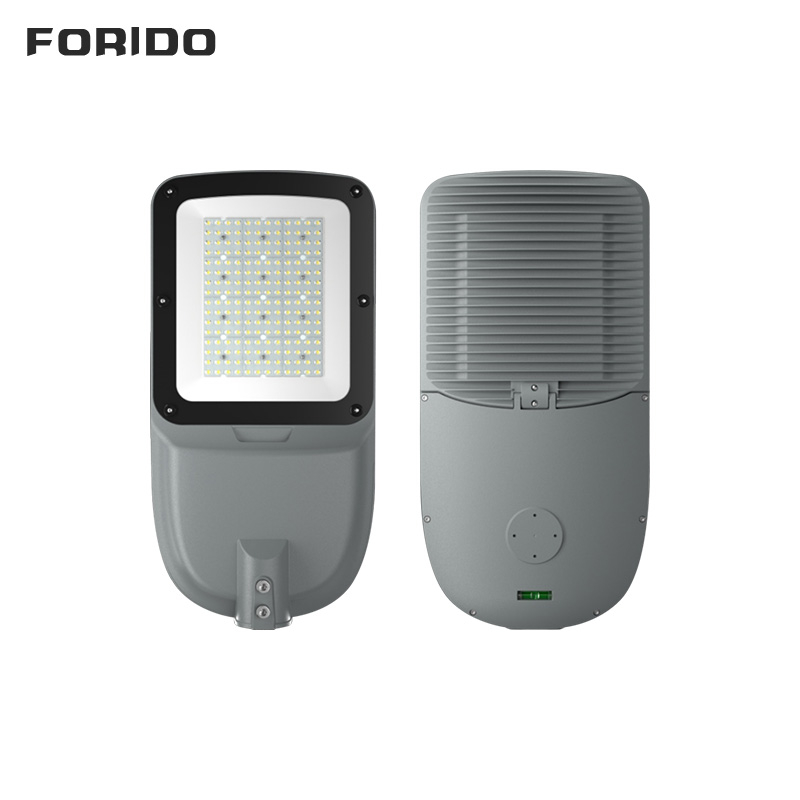

The LED lamp head is an outdoor lighting device centered on LED chips, suitable for various scenarios such as roads and squares. It is equipped with an aluminum alloy casing and a tempered glass cover, treated for corrosion resistance, with a protection level of IP65 or above, capable of withstanding harsh environments. The integrated design of the lamp housing and the heat dissipation device ensures heat dissipation, combined with constant current drive, the lifespan exceeds 50,000 hours. Through secondary light distribution technology, it controls the light without glare or flicker, and is more energy-efficient than traditional lamps by over 60%.
▶Product Advantage
1. High luminous efficiency and precise light distribution, enhancing road lighting utilization: Utilizing high luminous efficiency LED chips, the luminous efficiency exceeds 160lm/W, which is 20% higher than the industry average. Each watt of electricity can be converted into more effective illumination. Combined with professional optical lenses for secondary light distribution, the light spots are rectangular and evenly cover the road surface. The edge illuminance variation is ≤10%, with no light blind spots or waste due to overlap. Taking a city secondary road as an example, using a 120W lamp head, the average illuminance on the road surface can reach over 20lux, meeting the requirements of the "Urban Road Lighting Design Standard", while avoiding light pollution caused by leakage, and achieving "On-demand Lighting".
2.Low power consumption and long battery life, compatible with green energy systems: The overall lamp power consumption is 65% lower than traditional sodium lamps, and it supports seamless connection with solar, wind energy, etc. systems. Taking a 30W solar street lamp LED lamp head as an example, paired with a 50Ah energy storage battery, under an average daily effective illumination of 4 hours, it can achieve continuous normal lighting for 7 rainy days without reliance on the power grid. In addition, the lamp head's standby power consumption is ≤0.5W, with no electricity waste during long-term standby, and it meets the green lighting needs under the "Carbon Neutrality" goal.

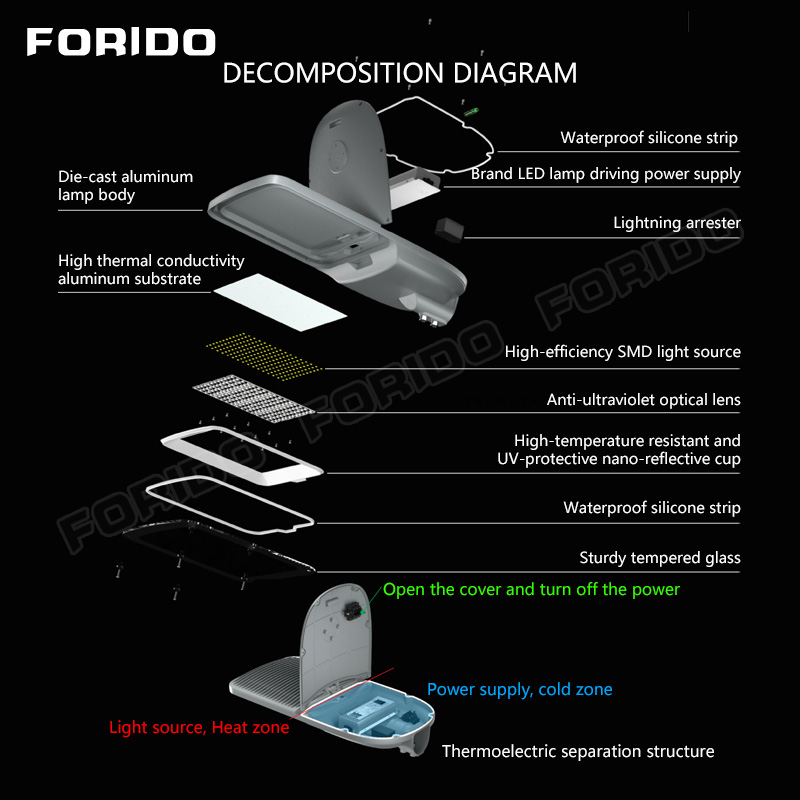

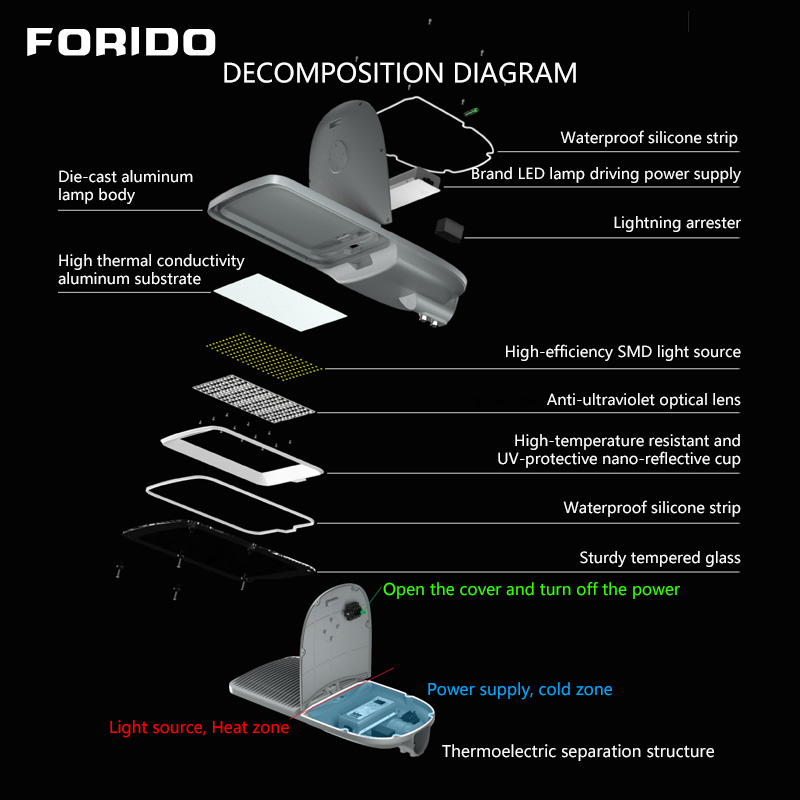

3. Weather-resistant and corrosion-resistant structure, reducing outdoor operation costs: The lamp body is made of ADC12 die-cast aluminum alloy integrated molding, with the surface treated by double-layer anti-corrosion (inner layer passivation + outer layer fluorocarbon spraying). The salt spray test can reach over 1000 hours. In coastal high-humidity and high-salt spray environments, there will be no rust marks within 5 years. The cover is made of impact-resistant PC material, with a transmittance of ≥92%, and it has anti-ultraviolet aging ability. After 5000 hours of ultraviolet exposure testing, the transmittance attenuation is ≤5%, effectively ensuring long-term lighting effect and reducing maintenance and replacement costs due to component damage.
4. Wide voltage range stable operation, adaptable to complex power grid environments: Equipped with a wide-voltage-range constant current drive power supply, it can operate stably within the AC85-265V voltage range. It can address the problem of voltage fluctuations in rural and remote areas' power grids, avoiding lamp head damage caused by excessive or insufficient voltage. At the same time, the drive power supply has multiple protection functions such as overcurrent, overvoltage, overtemperature, and lightning protection (surge protection level reaches 4kV). In thunderstorm weather or abnormal power grid conditions, it can automatically cut off dangerous current, reducing the equipment failure rate to below 0.5%, improving the stability of outdoor use.
5. Lightweight and easy installation, shortening construction cycle: Adopting a lightweight structural design, the lamp head weighs 30% less than traditional products at the same power. The 100W model weighs only 3.5kg, allowing one person to complete the installation operation. The bottom of the lamp head is equipped with a universal installation bracket, compatible with various installation methods such as clamp type and arm type, without the need for additional customized accessories. The installation time is shortened to 30 minutes per lamp, increasing the installation efficiency by 50% compared to traditional street lamps. For road renovation projects, the original lamp heads can be directly replaced without replacing the lamp poles, significantly reducing construction costs and工期.
6. Intelligent interconnection monitoring， achieving remote operation management： Equipped with NB-IoT or LoRa communication modules， it can be connected to the smart lighting management platform， supporting functions such as remote lighting control， brightness adjustment， and fault alarm. Managers can view the working status of each lamp head (such as voltage， current， temperature) in real time through mobile phones or computers. When a lamp head fails， the platform will automatically push alarm information to the maintenance personnel， with positioning accuracy within 1 meter. The maintenance response time is shortened from the traditional 24 hours to 2 hours， significantly improving maintenance efficiency.
▶Product Uses
1. Urban traffic arteries: Suitable for areas with heavy traffic such as city main roads and expressways, requiring 120-200W high-power models. Combined with anti-glare optical design, they ensure uniform lighting for over 6 lanes on the road surface. At the same time, they are connected to the smart system, automatically adjusting the brightness according to morning and evening rush hours to ensure smooth traffic.
2. Rural revitalization lighting projects: Focus on 50-100W low-power models, which can be directly matched with solar panels, without the need for complex power grid wiring. IP67 protection can withstand rural rainy and foggy weather, meeting the basic lighting needs of rural roads and village squares.
3. Industrial parks and logistics ports: Designed for factory roads, peripheral storage areas, and freight channels. Using anti-corrosion lamp bodies to cope with industrial dust and humid environments, 100-150W power can achieve long-distance lighting coverage, ensuring the safety of night loading and transportation operations.
4. Cultural tourism scenic spots and trails: Emphasizing 3000K warm light or 4000K neutral color temperature, combined with narrow beam angle lenses to avoid light interference with the landscape. 50-80W power is suitable for scenic trails and lakeside walkways, balancing lighting and creating a night landscape atmosphere.
5. Campus and community roads: Select 80-120W power, with soft light spots without flicker, suitable for campus main roads and community activity squares. Support for timed dimming, such as reducing to 50% brightness after 10 p.m. to balance lighting needs and energy-saving goals.
6. Remote areas and border roads: With high stability as the core, using wide-voltage drive (AC85-265V) to cope with voltage fluctuations, IP67 protection to withstand cold and sandstorms. Can be paired with energy storage equipment to meet the 24-hour basic lighting needs of remote roads and border outposts.
▶Product Operate Guide
1.Disconnect the power supply in advance, and check the compatibility between the lamp head model and the lamp pole;
2.Use a special tool to align the lamp head bracket with the preset interface of the lamp pole, and tighten the fasteners;
3.After stripping the wires, connect the power lines according to the positive and negative poles, and wrap insulating tape;
4.Gently shake the lamp head to check its stability. After confirming there are no errors, turn on the power supply, test the lighting and dimming functions, and confirm that everything is normal to complete the installation.
