▶ Product Introduction

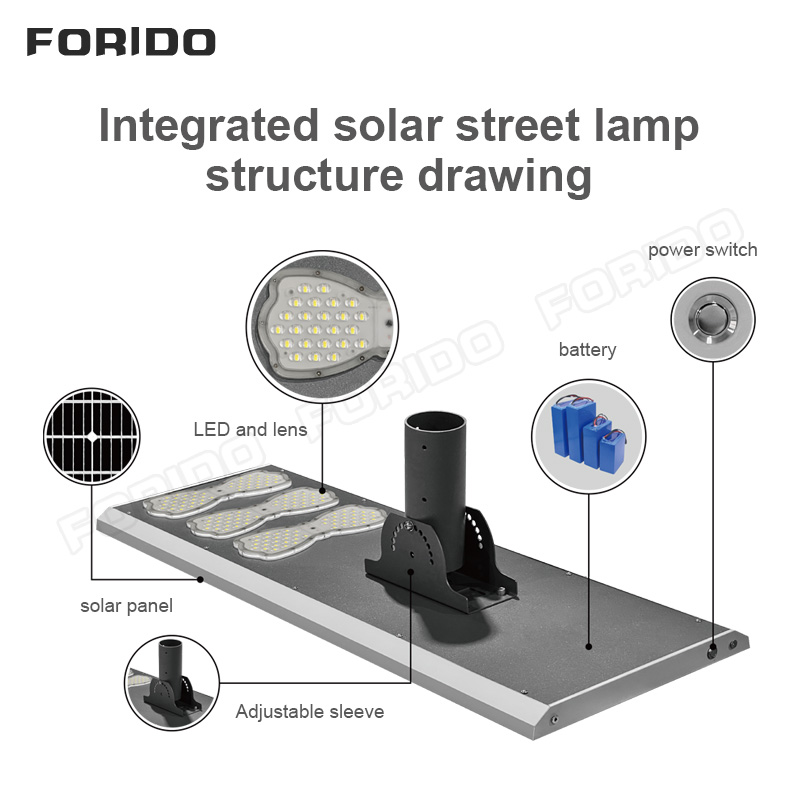

The integrated solar LED lamp head is an integrated lighting device that combines an efficient photovoltaic panel, long-life lithium battery, high-efficiency LED light source and intelligent controller. During the day, the photovoltaic panel converts light energy into electricity, and at night, it automatically lights up. Some models have human body sensing function and can intelligently adjust the brightness. No wiring is required, and the installation is convenient. It is suitable for roads, parks and other scenarios, and is energy-saving with low maintenance costs.
▶Product Advantage

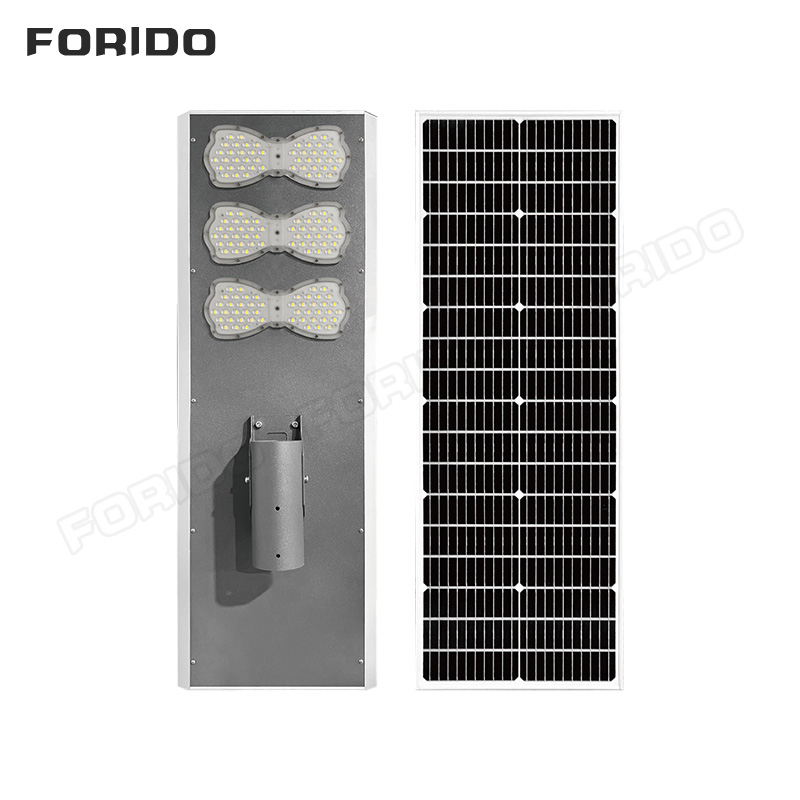

1. High-efficiency Photovoltaic Conversion, Strong Battery Capacity: Utilizing single-crystal silicon photovoltaic modules, the photoelectric conversion rate exceeds 23%, which is 3-5 percentage points higher than that of ordinary polycrystalline silicon modules. Combined with 18650 high-capacity lithium batteries, the energy storage density reaches 150Wh/kg. Under an average daily 4-hour lighting condition, it can ensure continuous normal lighting for 7 rainy days, meeting the long-term outdoor lighting needs and completely eliminating the reliance on traditional power grids.
2. High-Luminous-Efficiency LED Light Source, Excellent Lighting Performance: Equipped with imported high-luminous-efficiency LED chips, the luminous efficiency is up to 180LM/W, far exceeding the industry average of 150LM/W. The honeycomb-shaped optical lens design enhances the uniformity of light to 90%, with an illumination angle of up to 120°, covering an effective area of 50㎡/lamp. It also supports intelligent brightness adjustment, automatically switching between strong and weak light modes at night according to environmental needs, balancing lighting effect and energy efficiency.
3. IP67 High Protection Level, Suitable for Harsh Environments: The entire lamp adopts an integrated die-casting aluminum housing, with the surface treated by a nano-level anti-corrosion coating. It is waterproof, dustproof, and corrosion-resistant up to IP67, capable of stable operation in extreme temperature ranges of -30℃ to 60℃. The wind resistance level reaches 12 grades, and the seismic performance complies with GB/T 17743-2021 standards, able to easily handle severe weather conditions such as rainstorms, snowstorms, and typhoons, suitable for various outdoor scenarios such as rural roads, scenic areas, industrial parks, etc.
4. MPPT Intelligent Control System, Multiple Safety Protection: Integrated with an advanced MPPT maximum power point tracking controller, the charging efficiency is over 20% higher than that of traditional PWM controllers, enabling real-time optimization of photovoltaic panel power generation efficiency. It also features multiple protection functions such as overcharge, overdischarge, overcurrent, short circuit, and lightning protection (compliant with GB/T 18802.1-2011), effectively extending the lifespan of the battery and LED light source, with a total lifespan of up to 8-10 years, significantly reducing the maintenance costs of solar street lamps.
5. Wireless Installation without Wiring, Strong Compatibility: Adopting an integrated design, no complex wiring is required. A single person can complete the installation and debugging in 30 minutes, with an installation efficiency over 50% higher than that of split-type solar street lamps. The lamp head supports multi-angle adjustment (0-90°), adaptable to different heights of lamp poles (3-8 meters), compatible with light control, time control, and human body sensing, capable of flexible customization for different outdoor lighting scenarios, meeting diverse needs.
▶Product Uses

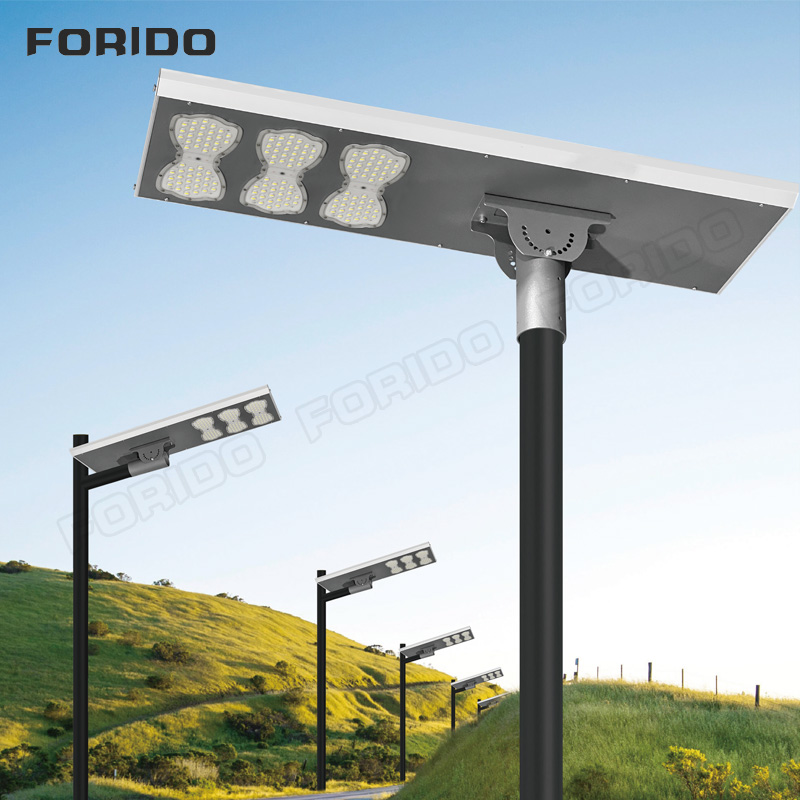

1.Rural and Town Road: Compatible with 3-6 meter lamp poles, meeting the lighting needs of main rural roads and village group paths. No need for power grid wiring, solving the power supply problem in remote areas. Each lamp covers 50 square meters, automatically lights up at night, ensuring the safety of villagers' night-time travel. It is the preferred choice for rural road lighting projects.
2.Scenic Areas and Park Green Spaces: Support multi-angle adjustment, can be used in conjunction with landscape lamp poles. The light is soft and not dazzling, able to enhance the atmosphere of the scenic area. IP67 protection can cope with outdoor wind and rain, and has zero electricity cost and zero pollution, conforming to the green and low-carbon operation concept of scenic areas, and enhancing the night-time experience for tourists.
3.Industrial Parks and Factories: High-efficiency LED light sources have a wide illumination range, capable of covering factory roads and storage areas. Resistant to 12-level wind and -30℃ low temperatures, stable operation in industrial outdoor complex environments. Maintenance-free characteristics reduce the outdoor lighting management cost of the factory area, ensuring the safety of night shift operations.
4.Community Courtyards and Residential District Walkways: Models with human body sensing function can intelligently adjust the light. Strong light when someone is present, weak light when no one is present. Installation is convenient without damaging the community road surface. At night, it provides lighting for residents' walking and children's play, helping to create a safe and comfortable community environment.
5.Municipal Temporary Engineering Sites: Such as road maintenance, infrastructure construction, etc. No complex installation required. Quick deployment can provide lighting, which can be moved and reused with the project, avoiding the safety hazards of temporary wire pulling, meeting the needs of municipal emergency lighting.
▶Product Operate Guide
1. First, fix the lamp pole to ensure it is vertical and stable;
2. Open the lamp head packaging and check if all accessories are present;
3. Align the lamp head with the top interface of the lamp pole and tighten it with screws;
4. Adjust the illumination angle of the lamp head (0-90°);
5. Remove the protective film of the photovoltaic panel and connect the internal connection lines;
6. Test the lighting function and confirm that the installation is complete. No wiring is required throughout the process. It can be operated by one person within 30 minutes.
