▶ Product Introduction

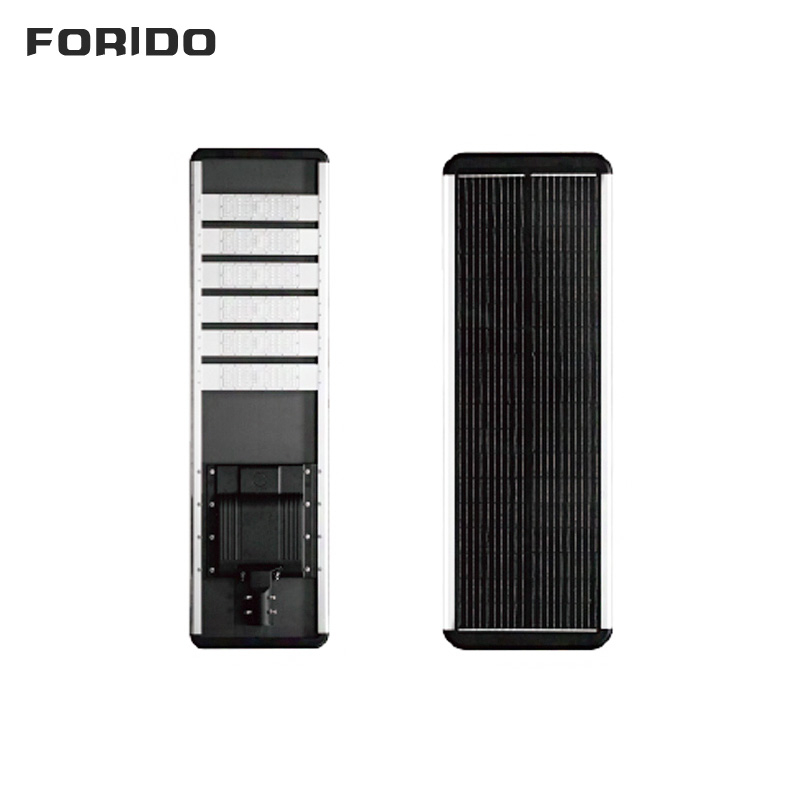

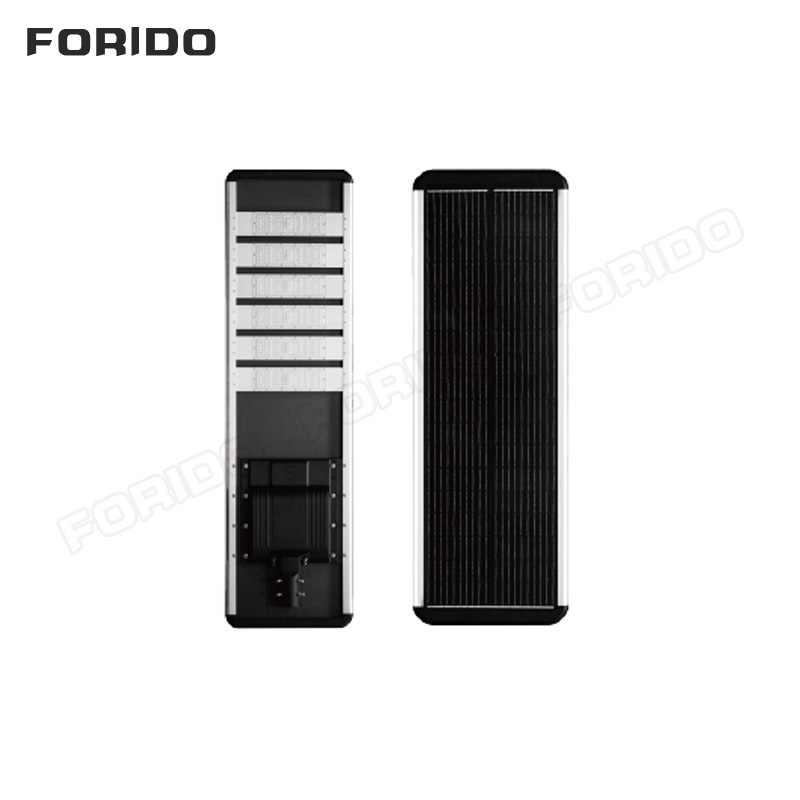

This integrated lamp head integrates power generation, energy storage and lighting functions. It uses efficient single-crystal silicon photovoltaic modules and high-efficiency LED chips, with a luminous efficiency of 160LM/W. It is equipped with an intelligent controller that can automatically charge and discharge, and has overcharge and over-discharge protection. It can maintain stable lighting even during continuous rainy days. The design without wiring is suitable for rural and scenic area scenarios, being environmentally friendly and energy-saving. It is the preferred choice for outdoor lighting.
▶Product Advantage
1. Special optimization for rural roads: To address the weak power grid issue in rural areas, a stand-alone design is adopted, allowing for installation without wiring. 23% conversion rate photovoltaic panels + large-capacity lithium batteries, with 4 hours of daily illumination sufficient to keep the lights on for 9 rainy days. Each light covers 50 square meters, and the brightness meets the standards for rural road lighting. This is the core choice for rural lighting projects.
2. Ecological lighting adaptation for scenic areas: Supports multi-color temperature adjustment from 3000K to 6500K, with soft and non-irritating light, avoiding damage to the night scenery of the scenic area. IP67 protection + corrosion-resistant casing, suitable for humid environments in mountainous areas and along lakes, zero pollution and zero electricity cost, in line with the green lighting concept of scenic areas, enhancing the night tour experience for tourists.
3. Industrial-grade durability design: The lamp body is made of thickened die-cast aluminum material, with impact resistance strength up to IK10, and a nano anti-corrosion coating on the surface, resistant to acid and alkali corrosion. It can operate stably in industrial environments ranging from -35°C to 65°C and in high dust conditions, with a light source lifespan of over 50,000 hours, reducing the frequency of maintenance in industrial parks.
4. Intelligent sensing and energy-saving technology: Equipped with a microwave human body sensing module, with an感应 distance of 10 meters and a response time of 0.3 seconds. When no one is present， it maintains a low brightness of 30%， and automatically switches to 100% high brightness when someone is present. This is 60% more energy-efficient compared to the normal brightness mode， while extending battery life and meeting the energy-saving requirements of community courtyard lighting.
5. Modular and convenient maintenance：Adopting a modular design， the battery， light source， and controller can be independently disassembled and replaced.预留 an inspection window， allowing for maintenance without disassembling the entire lamp， reducing the maintenance time to 10 minutes， significantly improving the efficiency of outdoor lighting project maintenance in the future.
▶Product Uses
1. Night tour path of cultural and tourism scenic area: Supports multi-color temperature adjustment ranging from 3000K to 6500K. Warm light enhances the atmosphere of the scenic area, while white light meets the lighting requirements. IP67 protection is suitable for humid environments in mountainous and lake areas. The time control function precisely controls the lighting period, aligning with the ecological lighting concept of the scenic area and enhancing the visitor experience.
2. New rural cultural square: Compatible with 4-8-meter lamp poles, with a wide illumination range and uniform light distribution, it can meet the lighting needs for square dancing and villagers' gatherings for multiple activities. No wiring required for quick installation, stable power supply even during continuous rainy days, helping to improve the infrastructure of new rural areas and enrich villagers' nighttime life.
3. Logistics and storage park: High-efficiency LED light sources have strong penetrating power, with each lamp covering 60 square meters, illuminating the truck loading and unloading area and the park passages. Anti-corrosion and dust-proof design is suitable for the park environment, with maintenance-free features reducing the lighting cost for logistics enterprises' storage, ensuring the efficiency of night-time goods turnover.
4. Municipal pocket park: Combined with low-profile landscape lamp poles, the small design does not disrupt the green landscape. Light control automatically turns on, with zero electricity consumption in line with the urban low-carbon concept, providing nearby leisure lighting support for citizens and helping to upgrade the lighting of urban micro-spaces.
5. Temporary construction site: No complex wiring required, quick deployment can provide lighting, which can be moved and reused as per the project progress. Impact-resistant and rain-proof design is suitable for the harsh environment of the construction site, avoiding safety hazards of temporary wire pulling, and meeting the emergency lighting needs of municipal engineering.
▶Product Operate Guide
1.Select an unobstructed installation point and secure the lamp pole;
2.Remove the lamp head and check the completeness of the accessories;
3.Align the lamp pole interface and tighten the screws with a wrench;
4. Manually adjust the pitch angle of the lamp head;
5.Remove the protective film of the photovoltaic panel and firmly connect the connection line;
6.Turn on the test mode and confirm that the lamp lights up normally.
