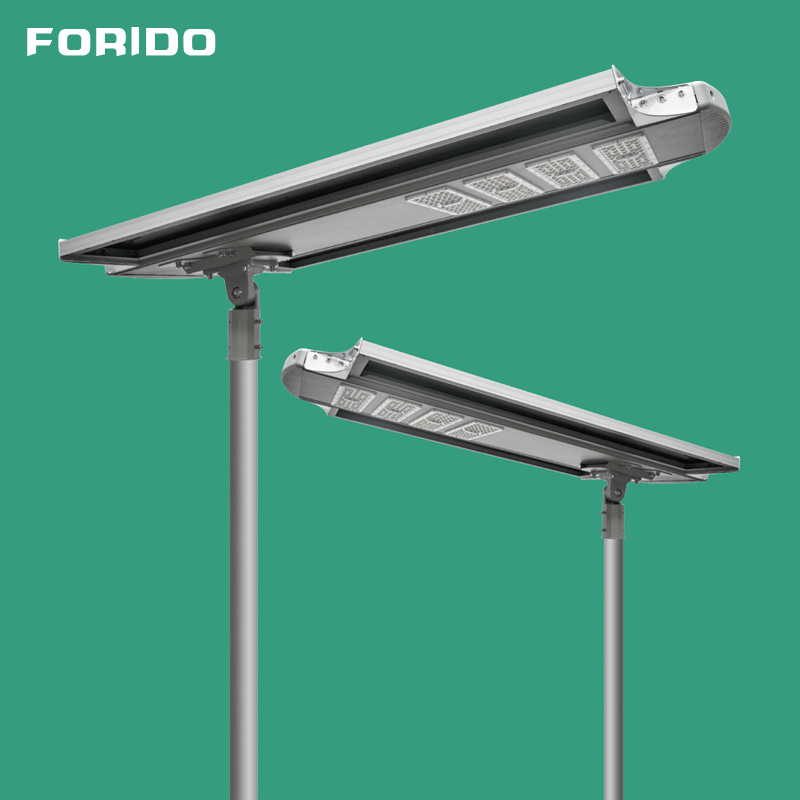

▶ Product Introduction

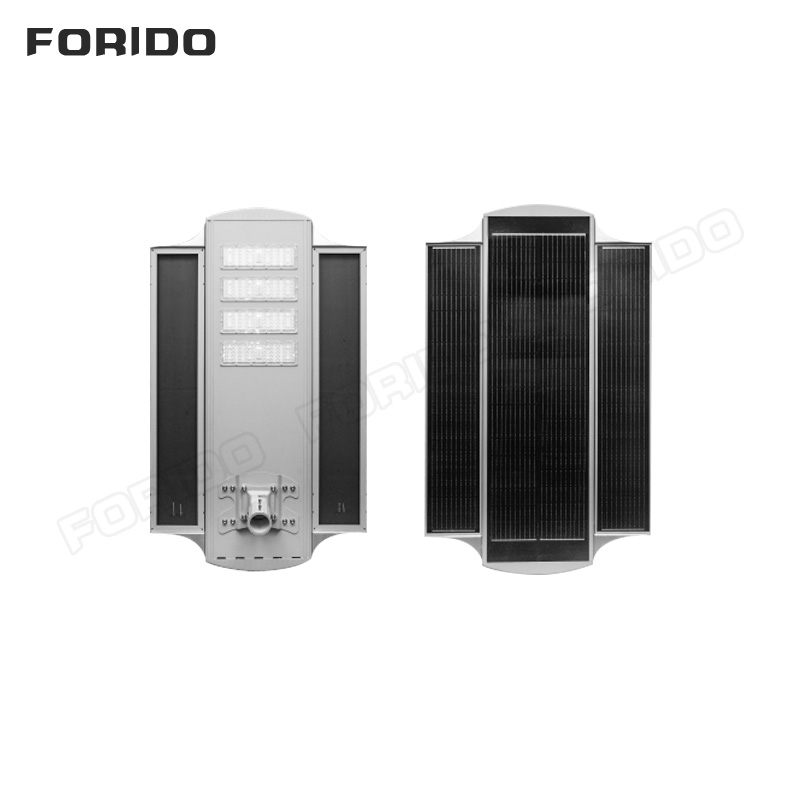

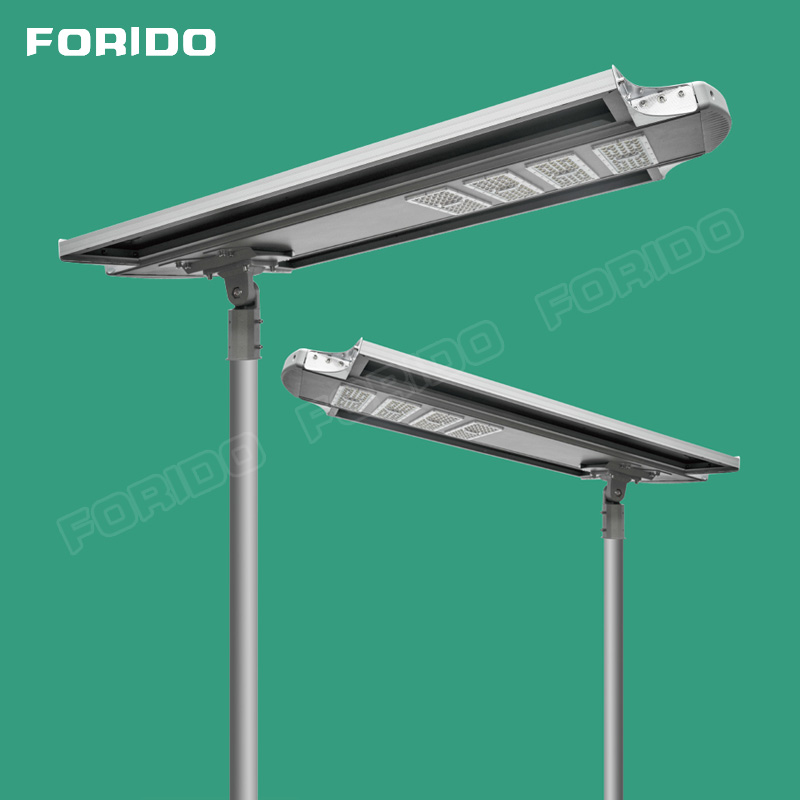

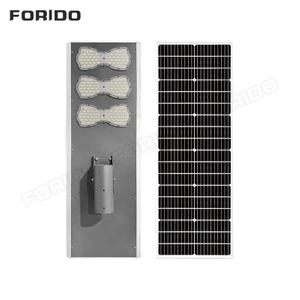

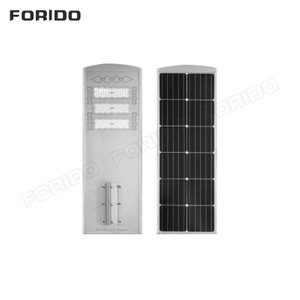

The integrated solar LED lamp head is an outdoor lighting device that integrates photovoltaic panels, lithium batteries, LED light sources and controllers. During the day, the photovoltaic panels convert light energy into electricity, and at night, it automatically lights up. It supports light control and time control modes. No wiring is required, and the installation is convenient. With IP65 protection, it is suitable for various environments and is applicable to roads, parks and other scenarios. It is energy-saving and has low maintenance costs, meeting the long-term outdoor lighting needs.
▶Product Advantage
1. Ultra-efficient photoelectric conversion system: Utilizing 24.5% high-conversion-rate monocrystalline silicon photovoltaic panels, which improves the industry average by 5 percentage points. Combined with 18650 power lithium-ion batteries, the energy storage density reaches 160Wh/kg. With 3.5 hours of daily 3.5-hour sunlight exposure, it can achieve continuous lighting for 12 rainy days, completely solving the anxiety of outdoor solar lighting battery life, and suitable for areas with insufficient lighting.
2. High-efficiency energy-saving LED light source: Equipped with imported COB LED chips, with a light efficiency of up to 195LM/W, which is 35% more energy-efficient than ordinary LEDs. Adopting a secondary optical distribution design, the light uniformity is 93%, the illumination angle is 135°, a single lamp covers 65㎡, supports intelligent dimming, and meets the lighting needs and energy-saving requirements of rural road lighting.
3. IP68 ultimate protection design: Integrated aluminum alloy die-casting housing + fluorocarbon coating, waterproof, dustproof, and salt spray resistance level IP68, can operate stably in extreme environments of -40℃ to 75℃. Wind resistance level 14, seismic compliance with GB/T 17743 standards, significantly reduces the failure rate of outdoor lighting equipment, suitable for complex climate scenarios.
4. Intelligent MPPT control technology: Built-in high-precision MPPT controller, charging efficiency is 25% higher than traditional PWM, real-time tracking the maximum power point. It has 6 layers of protection including overcharge, overdischarge, and lightning protection, extending battery life to over 8 years, reducing the maintenance cost of solar street lamps, and improving product cost-effectiveness.
5. No-wiring quick installation: The entire lamp weighs only 5.2kg, adopts a snap-fit connection design, no need for professional tools, and a single person can complete the installation in 20 minutes. Supports 0-90° angle adjustment, compatible with 3-8m lamp poles, compatible with various control modes, meeting the rapid deployment needs of different outdoor lighting scenarios.
▶Product Uses
1. Rural main road lighting: Compatible with 3-6-meter poles, no need for power grid wiring, solving the problem of rural power supply. Each lamp covers 50 square meters, can remain illuminated for 7 consecutive rainy days, with brightness meeting the needs of night travel, it is a cost-effective choice for rural road lighting projects, ensuring safe travel for villagers.
2. Urban park walkways: Soft and non-glare lighting, can be combined with landscape poles to blend into the environment. IP65 protection can withstand outdoor wind and rain, zero pollution and zero electricity cost, in line with the green operation concept of parks, providing comfortable lighting for citizens to walk and exercise, enhancing the night tour experience of urban parks.
3. Industrial park roads: High-efficiency light sources with wide illumination range, resistant to 12-level winds and temperature fluctuations, compatible with complex industrial outdoor environments. Maintenance-free features reduce factory management costs, illuminate workshop passages and storage areas, ensuring the safety of night shift operations and cargo transportation, meeting the lighting needs of industrial parks.
4. Residential courtyards and green belts: Compact in size without occupying space, models with human body sensing function can automatically adjust brightness. Installation is convenient without damaging the road surface, providing soft lighting for residents' leisure and children's play at night, helping to create a safe and livable residential environment.
5. Remote areas security lighting: Such as communication base stations in mountainous areas and surrounding border defense outposts, no need to rely on power grids to achieve 24-hour lighting. Human body sensing function triggers strong light, enhancing security monitoring effects, providing stable support for security in remote areas.
▶Product Operate Guide
1. Ensure the fixed lamp pole is vertical.
2. Inspect the lamp head and screw accessories after unpacking.
3. Connect the lamp head to the top of the lamp pole and tighten the fixing screws.
4. Adjust the illumination angle to the appropriate direction.
5. Remove the protective film of the photovoltaic panel and connect the internal circuits.
6. Test the lighting function. The installation is completed without any wiring.
