▶ Product Introduction

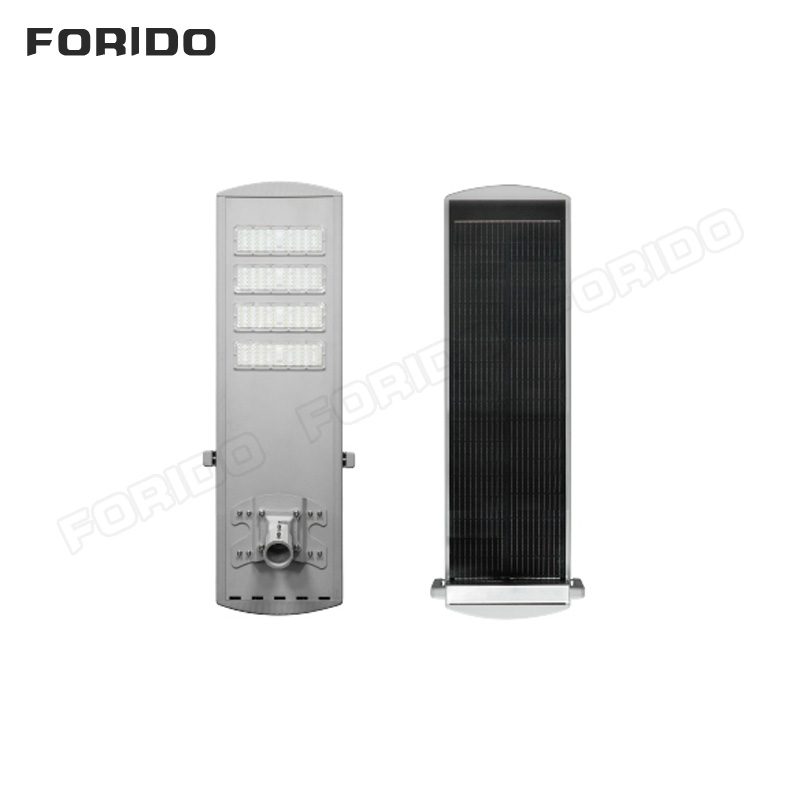

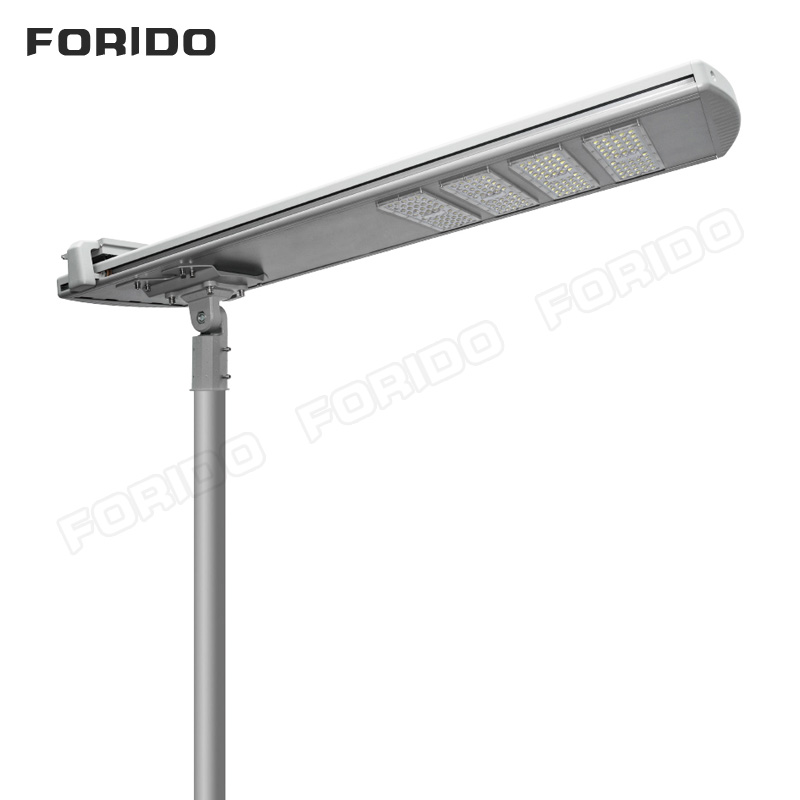

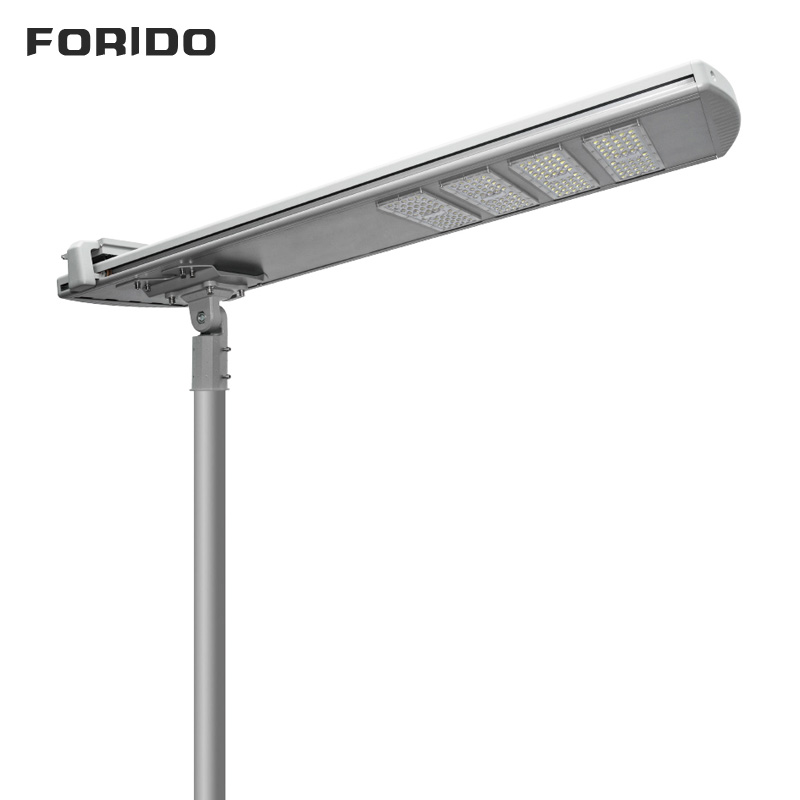

The integrated solar LED lamp head is specially designed for outdoor scenarios. Its integrated design simplifies the installation process and can be completed by a single person quickly. During the day, it absorbs solar energy for storage, and at night, it automatically turns on the lighting. Some models also have human body sensing function. It is resistant to wind and earthquakes, waterproof and dustproof, and can adapt to extreme temperatures. It offers zero electricity cost and zero pollution, providing stable and reliable lighting support for roads, courtyards, etc.
▶Product Advantage
1. New generation photoelectric conversion technology: Utilizing N-type monocrystalline silicon photovoltaic panels, the photoelectric conversion rate exceeds 25.8%, an increase of 4.2 percentage points compared to P-type components. Combined with lithium iron phosphate batteries, the cycle life exceeds 3000 times, the energy storage capacity increases by 20%, and 3 hours of daily 3-hour sunlight can meet 10 hours of overnight lighting, enhancing the long-term outdoor lighting performance.
2. High-efficiency wide-area lighting: Selecting the latest generation of LED chips, the light efficiency reaches 200LM/W, far exceeding the industry average of 150LM/W. Using a honeycomb-shaped lens array, the illumination angle is 140°, the effective coverage area is 70㎡, the light penetration is strong, and clear lighting can be guaranteed even in rainy weather, meeting the upgrade requirements for road lighting.
3. Intelligent constant-temperature cooling system: Incorporating graphene heat dissipation sheets + convection cooling structure, the cooling efficiency increases by 30%, and the working temperature of the lamp body is controlled below 50℃. Avoiding the light attenuation caused by high temperatures, the lamp's lifespan is extended to 60,000 hours, ensuring the long-term stable operation of solar street lamps and reducing replacement costs.
4. Multiple intelligent protection mechanisms: In addition to basic safety protection, new features include over-temperature protection, reverse connection protection, and surge protection (8kV), in line with GB/T 18802.1-2011 standards. The system can intelligently identify abnormal conditions and automatically cut off power supply, reducing the risk of equipment damage and enhancing the safety of outdoor lighting equipment.
5. Lightweight and easy-installation design: Optimizing the structural design, the overall lamp weight is reduced to 4.8kg, 25% lighter than similar products. Using quick-connect interfaces and paired with dedicated installation brackets, a single person can complete installation and debugging in 15 minutes, increasing installation efficiency by 70%, and being suitable for rapid deployment in emergency lighting projects.
▶ Product Introduction
1. Rural village group paths: Due to the narrow and scattered nature of village group paths, 3-4-meter short lamp poles are suitable for installation, which is flexible. Each lamp covers 30-40 square meters, has moderate brightness without wasting electricity, and can be illuminated without a power grid, solving the lighting blind spots in remote village group paths and facilitating villagers' short-distance night travel.
2. Ecological farm and pick-up gardens: Support warm light illumination to avoid strong light damaging crop growth, and provide soft light for night picking and farm night tours. IP65 protection can cope with the damp environment in the fields, the zero-pollution feature is in line with the concept of ecological farms, and helps farms increase income through night operation.
3. Factory perimeter security: With human body sensing function, the sensing distance is 8-10 meters. When someone approaches, it automatically switches to strong light to enhance the security deterrence. Installed on the lamp poles around the factory perimeter, it does not require wiring and does not damage the factory structure, providing intelligent support for factory security lighting and reducing security pressure.
4. Outdoor areas of schools: Such as school walkways and the surrounding areas of the playground, the light is soft and not dazzling, protecting students' eyesight. It has overcharge and overdischarge protection, is safe and reliable to use, and has maintenance-free characteristics, reducing the workload of school logistics, and providing a safe and stable solution for outdoor lighting in schools.
5. Coastal rural roads: IP67 high protection level + anti-salt fog coating, resisting the erosion of coastal damp and salt fog, extending service life. Designed to withstand 13-level wind, suitable for the windy environment in coastal areas, stable lighting in continuous rainy days, solving the problem of outdoor lighting durability in coastal areas.
▶Product Operate Guide
1.First, fix the lamp pole onto the preset base;
2. Open the packaging of the lamp head, check that the core components are undamaged;
3. Align the bottom of the lamp head with the lamp pole and tighten the fixing parts;
4. Adjust the illumination angle of the lamp head (0-90°);
5.Connect the internal power supply cable;
6. Test the lighting function; if there is no abnormality, the installation is completed.
