▶ Product Introduction

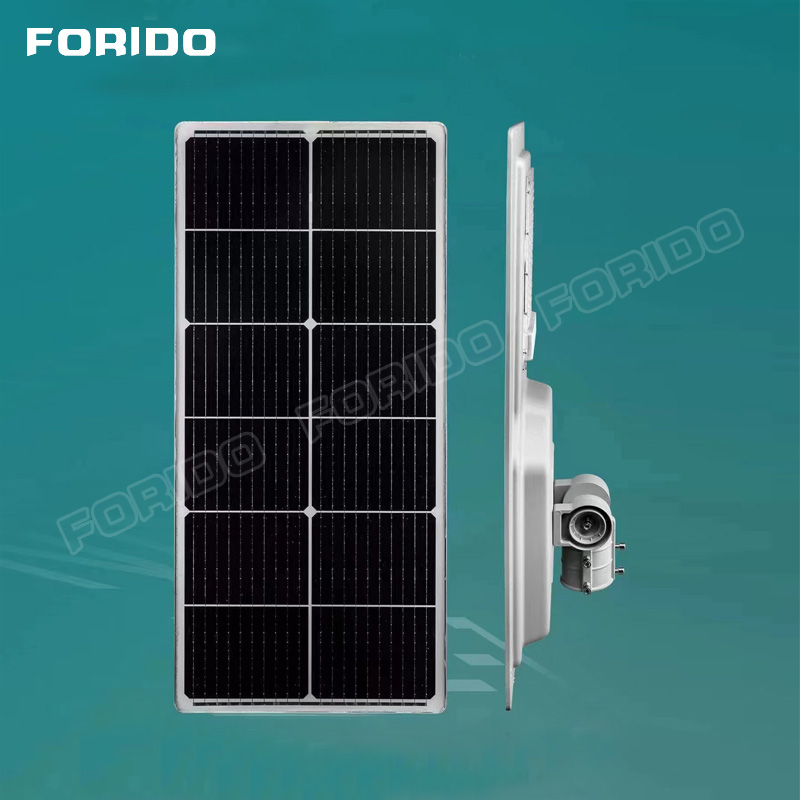

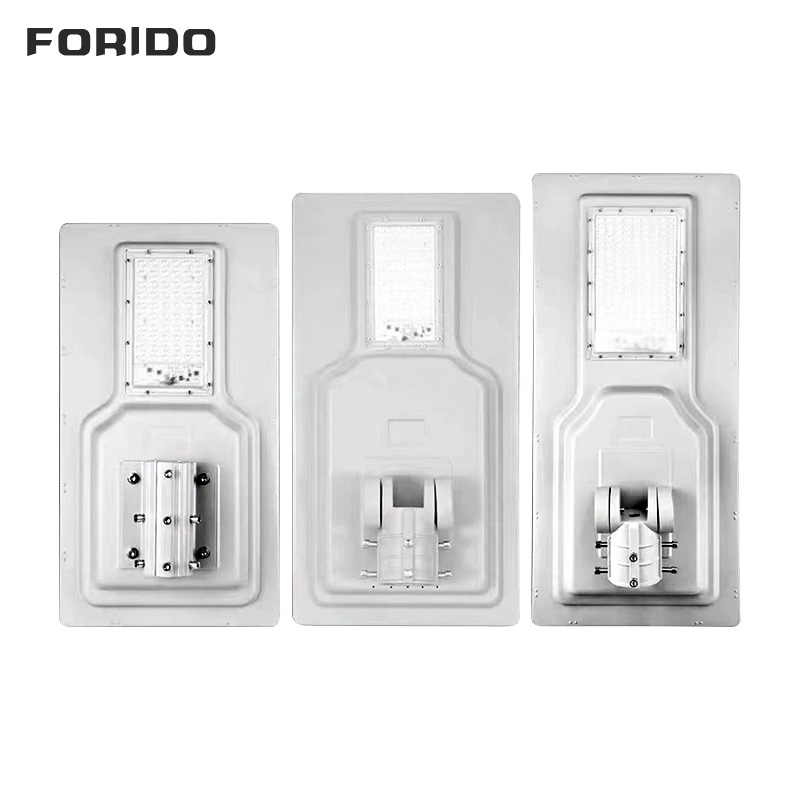

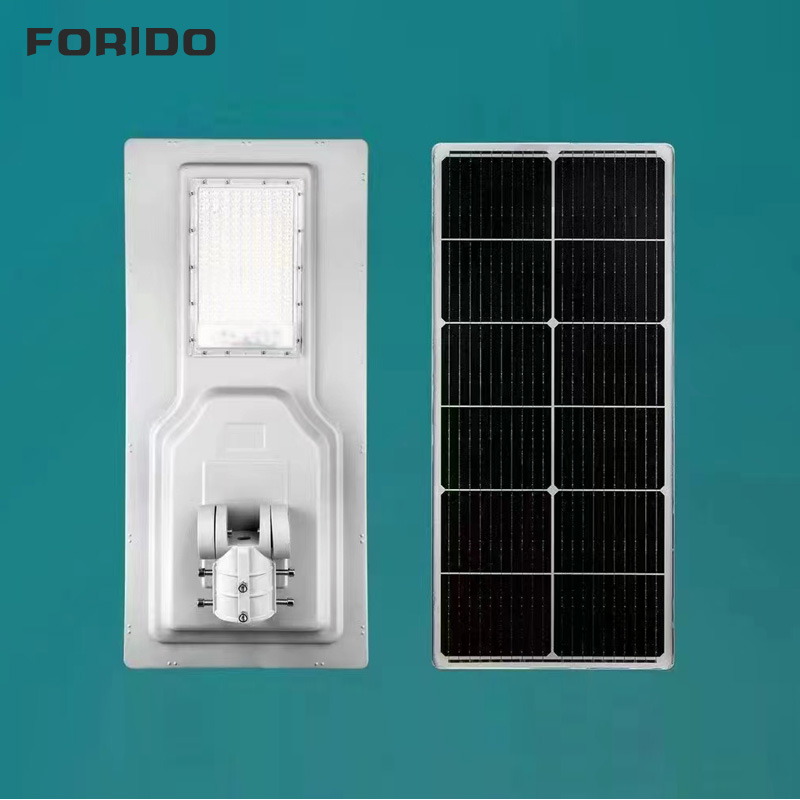

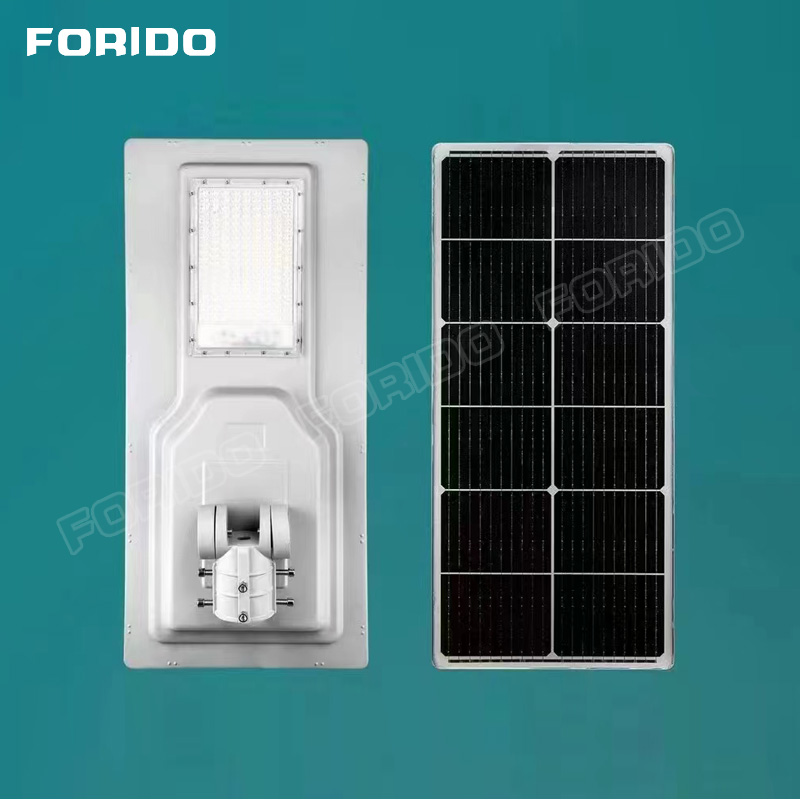

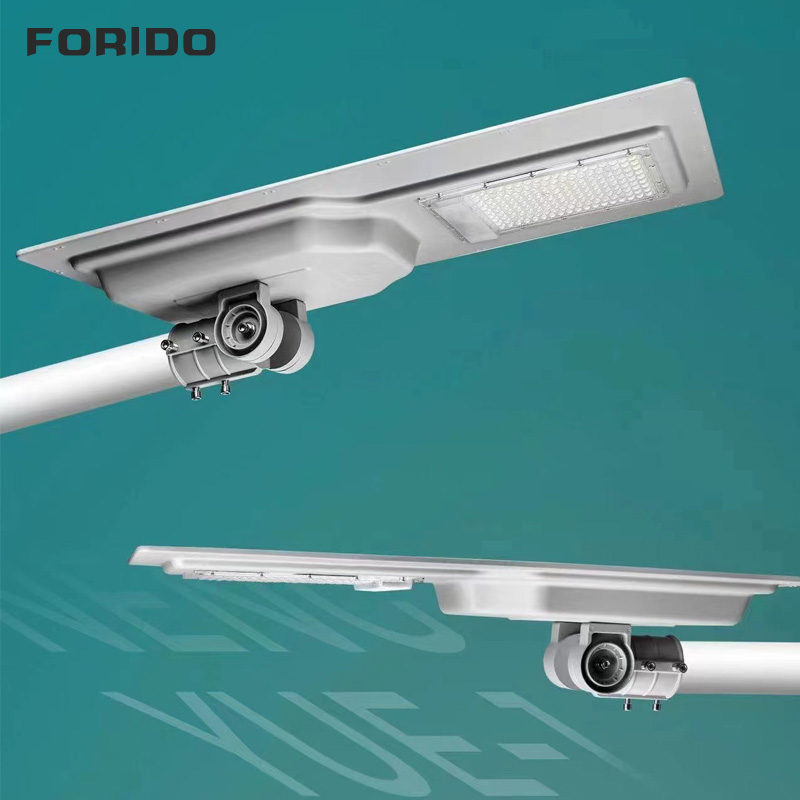

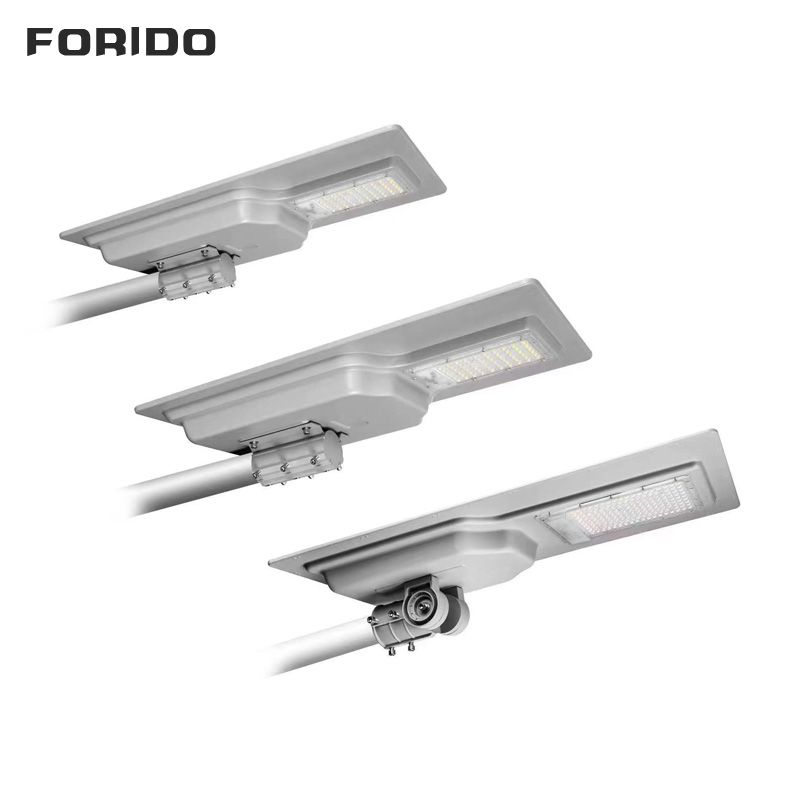

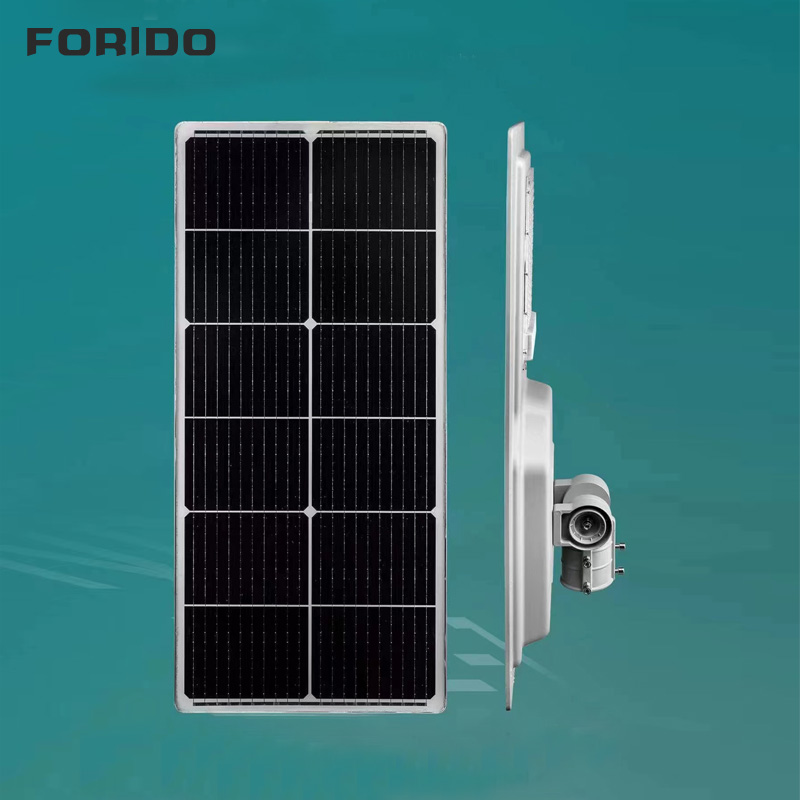

The integrated solar LED lamp head is an integrated product specifically designed for outdoor lighting. It integrates solar power generation, energy storage, and lighting functions. During the day, it absorbs solar energy through photovoltaic components and converts it into electricity for storage. At night, it automatically activates the LED light source to emit light. Some models support light control, time control, or human body sensing adjustment. It does not require an external power grid, is flexible to install, and is suitable for scenarios such as courtyards, rural roads, and scenic areas. It has the advantages of energy conservation, environmental protection, and low maintenance, and can meet various outdoor lighting needs.
▶Product Advantage
1. Ultra-high energy conversion and storage, worry-free lighting in rainy days: Using high-efficiency monocrystalline silicon solar panels, the photoelectric conversion efficiency exceeds 24%, which is 4 percentage points higher than the industry's conventional components. Combined with lithium iron phosphate batteries, the cycle life exceeds 2000 times, and the storage capacity can reach 12000mAh. Under an average daily illumination of 3.5 hours, it can ensure continuous lighting for 10 rainy days, completely solving the battery life pain point of outdoor solar lighting, and suitable for areas with complex lighting conditions.
2. Low consumption and high luminous efficiency, wider lighting coverage: Equipped with high-quality COB LED light sources, the luminous efficiency is up to 190LM/W, which is 30% more energy-efficient than ordinary LED light sources. Adopting professional optical distribution design, the light utilization rate is increased to 92%, with the maximum illumination angle of 130°, and each lamp can effectively cover an area of 60㎡. It also supports 0-100% brightness adjustment without steps, meeting the lighting needs of different scenarios such as rural roads and community parks, balancing energy saving and practicality.
3. Top-level IP68 protection, strong resistance to harsh environments: The lamp body is made of integrated aluminum alloy casting, with a surface coated with fluorocarbon anti-corrosion coating. The waterproof, dustproof, and salt spray resistance levels reach IP68, far exceeding the common IP65 standard. It can work stably at extreme temperatures of -40℃ to 70℃, with an anti-wind grade of 13, and can withstand severe weather conditions such as rainstorms, snowstorms, and sandstorms, significantly reducing the failure rate of outdoor lighting equipment.
4. Intelligent dual-mode control, convenient operation: The built-in intelligent MCU control system supports light control + time control dual-mode operation. It can automatically identify environmental brightness, automatically turn on at dusk and turn off in the morning, and can be set as needed for lighting duration. Some models are equipped with human body sensing function, with a sensing distance of 8-12 meters. When sensing a human body, it automatically switches to high-brightness mode, and returns to low-brightness mode when no one is present, further saving energy, extending battery life, and reducing the cost of solar street lamps.
5. Lightweight design, efficient installation and maintenance: The entire lamp weighs only 5.8kg, 20% lighter than similar products. It can be easily moved by one person. It adopts a wire-free snap-in installation structure, without the need for professional tools, and can complete the installation and debugging of a single lamp within 20 minutes. The lamp body is reserved for maintenance windows, making it easier to replace batteries, light sources, etc. without disassembling the entire lamp, reducing maintenance time to 15 minutes, significantly improving the construction and maintenance efficiency of outdoor lighting projects.
▶Product Uses
1.Rural New Village Lighting: Suitable for areas with weak power grid coverage, these lamps can be installed without the need for underground wiring. They are compatible with 3-5 meter lamp poles and can meet the lighting needs of village entrances, main roads, and cultural squares. They can remain illuminated for 7 consecutive rainy days, helping to improve the rural nighttime infrastructure and enhancing the convenience of villagers' lives.
2.Tourism and Cultural Attractions Path Lighting: Support multi-color temperature adjustment for warm light and white light, with soft light that does not disrupt the night view. IP67 protection can handle humid environments in mountainous areas and along lakes, and combined with time control, it precisely controls the lighting hours, meeting the lighting needs of scenic area ecological tourism. This enhances the night-time experience for tourists.
3.Logistics Park and Surrounding Warehouses: High-efficiency light sources have a long illumination distance, with each lamp covering 60 square meters, and can illuminate truck lanes and loading/unloading areas. With 12-level wind resistance and corrosion-resistant design, they are suitable for outdoor environments in the park and do not require maintenance, reducing the cost of logistics and warehousing lighting and ensuring safe nighttime operations.
4.Municipal Pocket Parks and Corner Green Spaces: Compact in size, they can be paired with low-profile landscape lamp poles, not occupying too much space. They support automatic lighting control by light sensors, providing lighting for citizens' leisure and exercise at night. Zero electricity consumption is in line with the city's low-carbon green lighting concept, and it improves the utilization rate of urban public spaces.
5.Remote Area Security Lighting: Such as border defense outposts and communication base stations in mountainous areas, 24-hour emergency lighting can be achieved without relying on the power grid. With human body sensing function, the brightness is enhanced automatically when a moving object is detected, helping to support security monitoring in remote areas and enhancing safety protection capabilities.
▶Product Operate Guide
1. Ensure there is no obstruction at the installation location and secure the matching lamp pole;
2. Remove the lamp head, check the screws, connection lines, etc.;
3. Align the bottom interface of the lamp head with the top of the lamp pole and tighten the fixing screws with a wrench;
4. Manually adjust the pitch angle of the lamp head to the appropriate lighting direction;
5. Remove the protective film on the surface of the photovoltaic panel and plug in the internal power cord;
6. Turn on the test mode to check if the lamp lights up normally and complete the installation. No wiring is required throughout the process, and simple tools can be used for operation.
