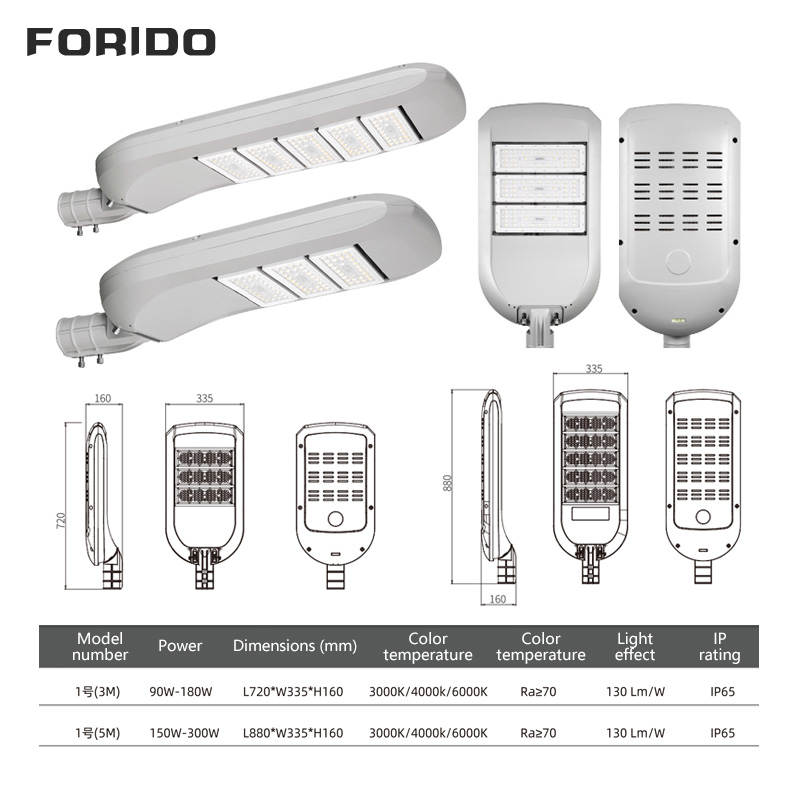

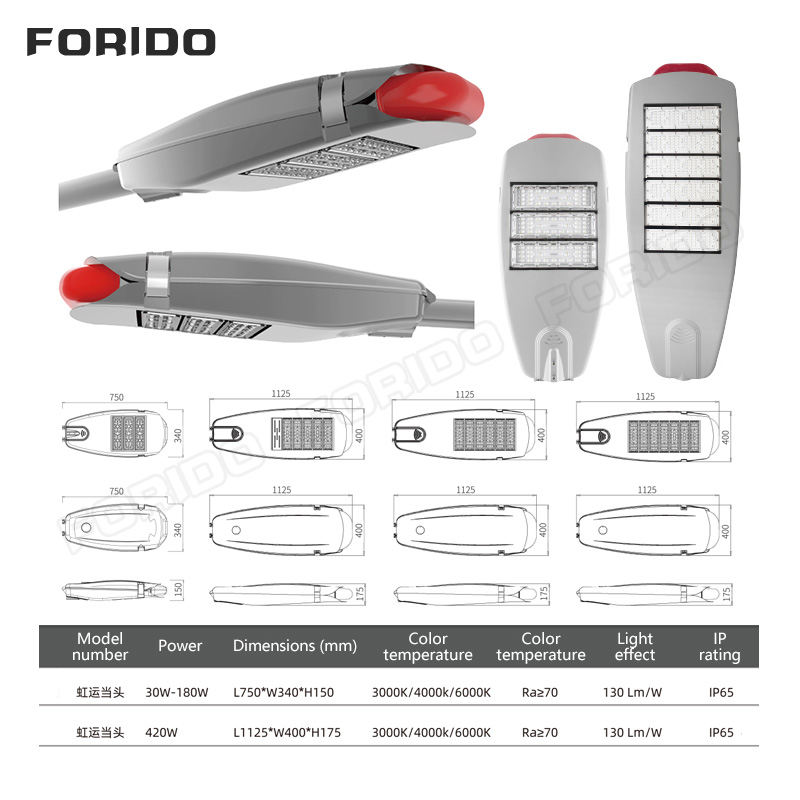

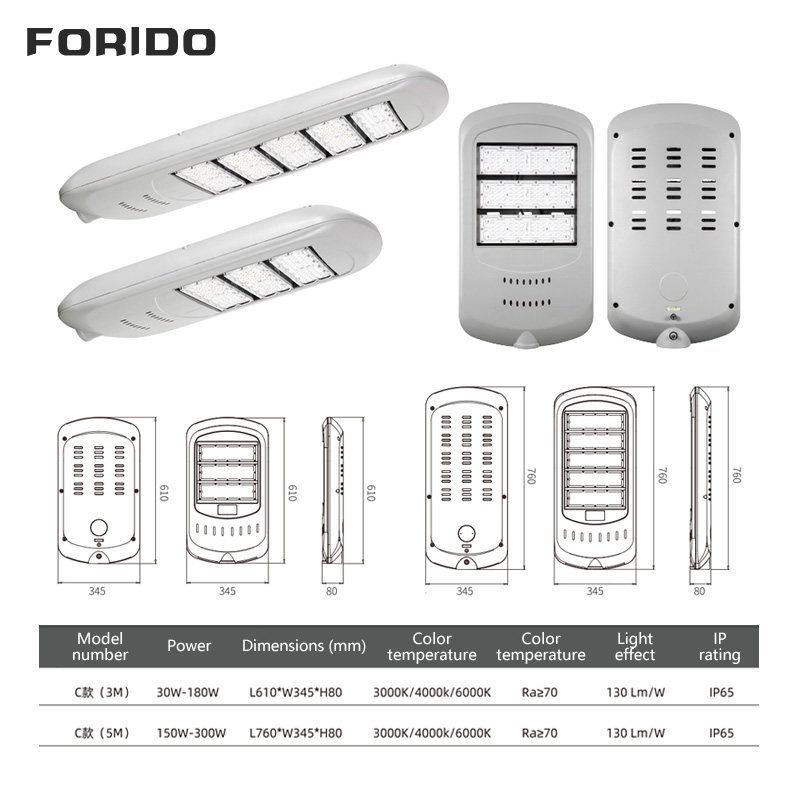

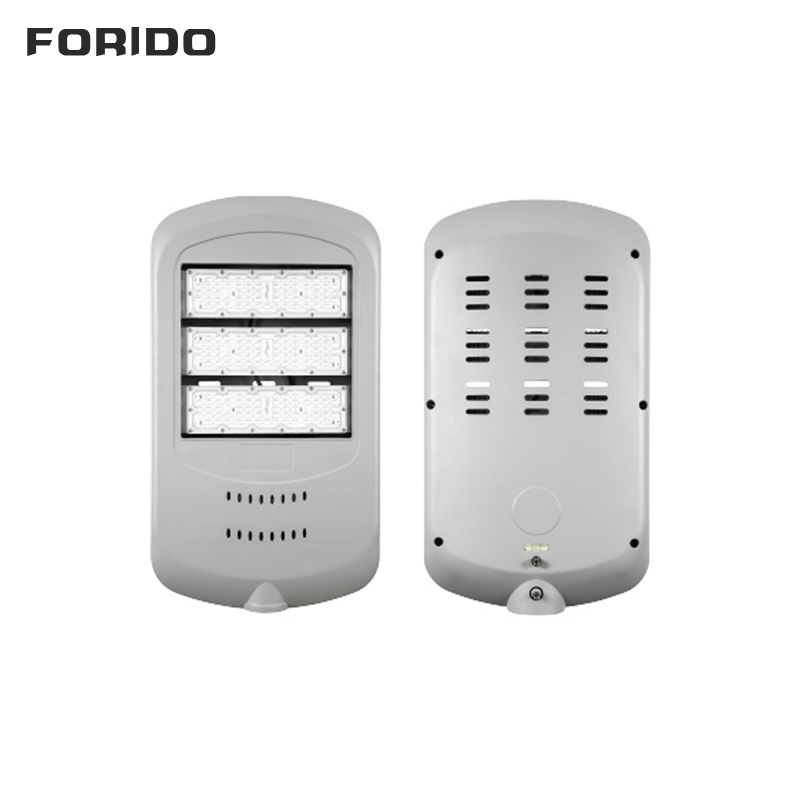

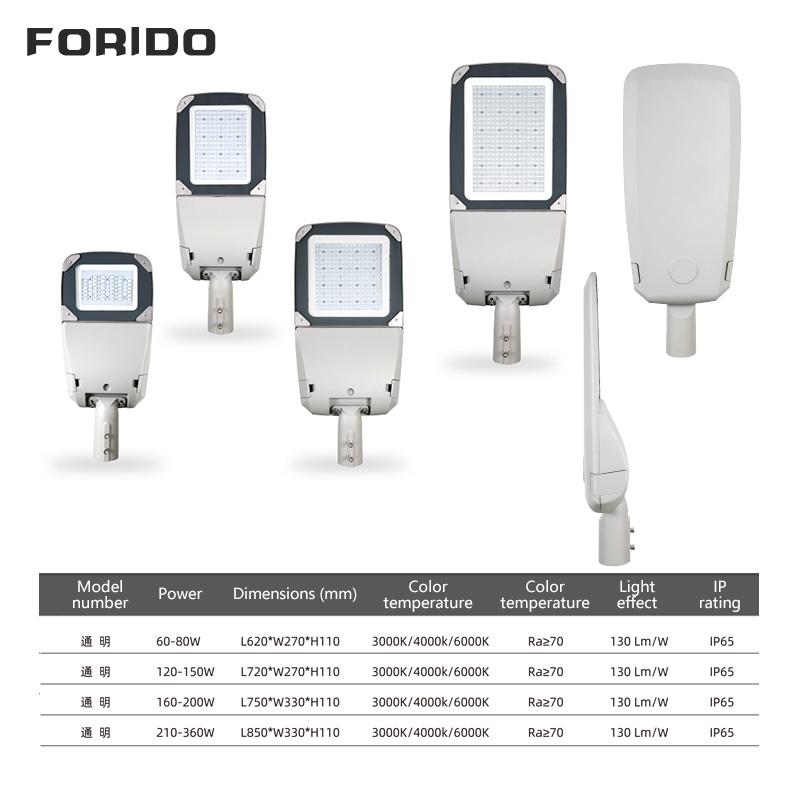

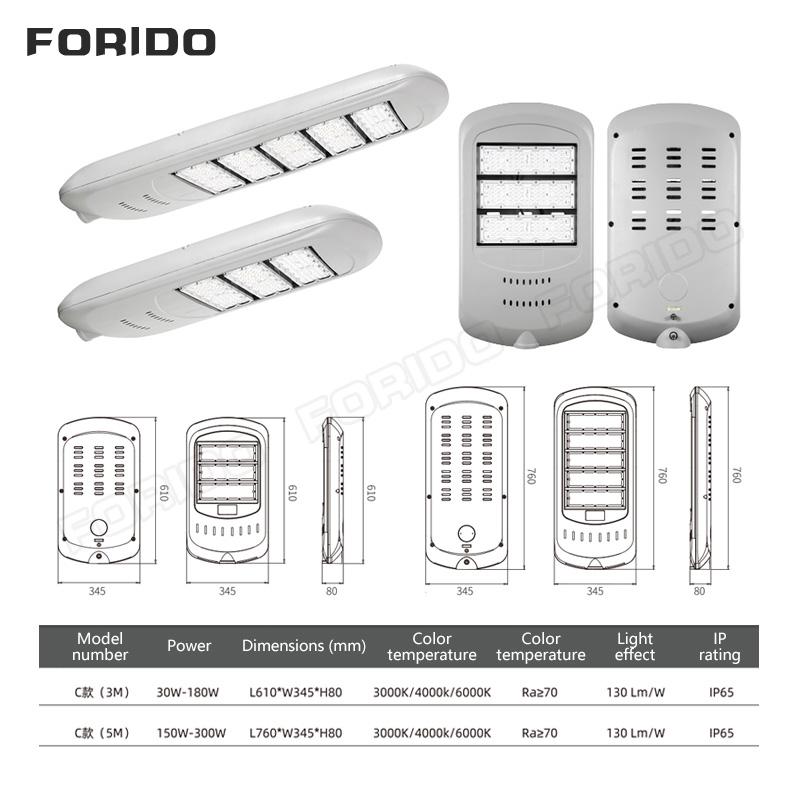

▶ Product Introduction
The LED lamp post is an energy-saving lighting device that replaces traditional street lamps, focusing on road safety and energy efficiency. Its core function is to provide efficient lighting at night, with uniform illumination covering the road surface, enhancing the visibility for pedestrians and vehicles. It supports intelligent dimming, allowing for adjustable brightness as needed, further reducing energy consumption. The structure is made of weather-resistant materials, capable of withstanding high temperatures, heavy rain, etc., and it lights up instantly upon startup, without the need for preheating, meeting the modern urban lighting operation and maintenance requirements.
▶Product Advantage
1. Ultra-energy-efficient light output, reducing long-term electricity consumption costs: Using imported high-efficiency LED bulbs, the light output remains stable at 140-160lm/W. Compared to traditional 250W sodium lamps, a 100W LED lamp head can meet the same lighting requirements, reducing annual electricity consumption by approximately 1314 kWh. Based on the average municipal lighting electricity price of 0.8 yuan/kWh, each lamp can save over 1050 yuan in electricity costs annually. If a city replaces 1000 lamps, the total annual electricity savings can exceed 1.05 million yuan. Long-term use can create significant economic value for users and meet the requirements of energy conservation and emission reduction.
2. Durable and resistant to attenuation, extending equipment replacement cycle: Through the "lamp housing - heat sink" integrated design, combined with nano-ceramic heat dissipation coating, the heat dissipation efficiency is increased by 35%, allowing the LED chip to operate at a temperature below 60°C, avoiding light attenuation caused by high temperatures. According to third-party testing, after continuous operation for 30,000 hours, the light attenuation rate is ≤10%, far lower than the industry's average standard of 20%. The service life is over 50,000 hours, and based on 12 hours of daily lighting, it can be used stably for 11 years, reducing the replacement frequency and labor costs by 90%.
3. High protection performance, suitable for all outdoor environments: Strictly following IP67 protection standards for production, the joint of the lamp body is sealed with a triethylene terephthalate rubber ring, with a waterproof level of 30 minutes without leakage when immersed in 1 meter of water. At the same time, it has passed -40°C low-temperature startup tests, 70°C high-temperature operation tests, and 10-level typhoon simulation tests. It can work normally in areas with severe cold in the north, hot summers in the south, or high-salt-spray coastal regions. It is suitable for various outdoor lighting scenarios such as municipal main roads, rural roads, and scenic footpaths.
4. No glare and anti-frequency flicker, ensuring road safety: Using an asymmetric optical lens for secondary light distribution, the light spot precisely covers the road surface, with a cut-off angle controlled between 12°-15°, effectively avoiding direct light shining on the driver's line of sight. The glare value (UGR) is ≤18, in line with the "Urban Road Lighting Design Standard". Additionally, it is equipped with a high-frequency constant current drive power supply, with the frequency flicker depth being <2%, far below the national limit of 10%. This can reduce visual fatigue for pedestrians and drivers and lower the incidence of night traffic accidents, enhancing road safety.
5. Intelligent control, enabling precise operation and management: Built with a LoRa wireless communication module, it supports connection to the smart lighting management platform. It can automatically adjust brightness based on traffic volume and light intensity. For example, when traffic volume decreases in the late night, the brightness can be reduced to 50%, further saving 30% of energy consumption. The platform can monitor parameters such as lamp head voltage, current, and temperature in real time. When a fault occurs, it automatically sends an alarm message and locates the fault location. Maintenance personnel can quickly arrive for repair, reducing the fault handling time from the traditional 24 hours to within 4 hours.
▶Product Uses
1. Secondary roads and side roads in cities: compatible with 80-120W power, with a luminous efficiency of 130lm/W or above, meeting the lighting requirements for 3-4 lanes. Support intelligent dimming, reducing brightness during off-peak hours for energy saving, and with anti-glare design to reduce light interference for residents along the street, balancing the experience of passage and residence.
2. Rural construction roads: mostly choose 50-80W models, which can be combined with a solar power supply system, without the need for grid renovation. IP67 protection to cope with the rainy and foggy environment in rural areas, illuminating the village entrance and field roads, helping to ensure the safety of nighttime travel in the countryside.
3. Surroundings of large commercial complexes: adopt 100-150W power, with high color rendering (Ra≥80) to restore details of buildings and roads. Combined with a smart control system, adjust brightness according to the peak hours of shopping mall traffic, enhancing the atmosphere and safety of the commercial area at night.
4. Waterfront scenic areas and greenways: focus on 30-60W small power, with a 3000K warm color temperature to create a comfortable atmosphere. Narrow beam angle design avoids direct light on the water surface, suitable for riverbanks and urban greenways, balancing lighting and ecological landscape protection.
5. Internal roads of industrial parks: use anti-corrosion and rust-proof lamp bodies, 100-120W power to cover the main roads and raw material transportation channels of the factory area. Without flashing characteristics to reduce workers' visual fatigue, ensuring the safety of night inspections, material transportation, etc. operations.
6. Old residential area renovation projects: select 80-100W power, with uniform light spots without dead zones, suitable for residential roads and activity squares. Support timed switching and brightness adjustment, such as lowering brightness after 11 PM, balancing the needs of residents' rest and energy saving.
▶Product Operate Guide
1. First, cut off the power supply of the lighting circuit and remove the old lamp head and clean the interface of the lamp pole;
2. Align the installation bracket of the LED lamp head with the lamp pole, and use a wrench to tighten the fixing bolts until there is no looseness;
3. Connect the power cord according to the markings, wrap insulating tape to prevent leakage;
4. After powering on, check if the lamp head is functioning properly, observe the position of the light spot, and confirm that it is stable and the function is correct to complete the installation.
