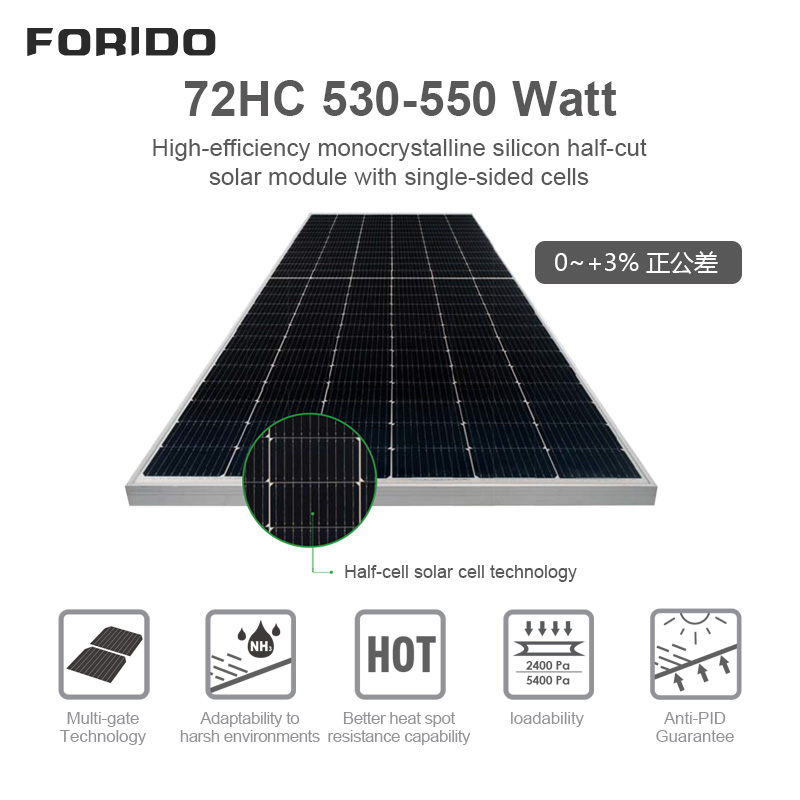

This cutting-edge bifacial half-cell solar module integrates N-type monocrystalline technology, half-cell design, and multi-gate architecture to deliver superior performance, even in harsh environments. With bifacial power generation, anti-PID protection, and rugged construction, it’s the ideal choice for users seeking top-tier efficiency, durability, and long-term ROI. Whether you’re building a large solar farm or upgrading a commercial rooftop, this panel sets a new standard for high-power solar solutions.

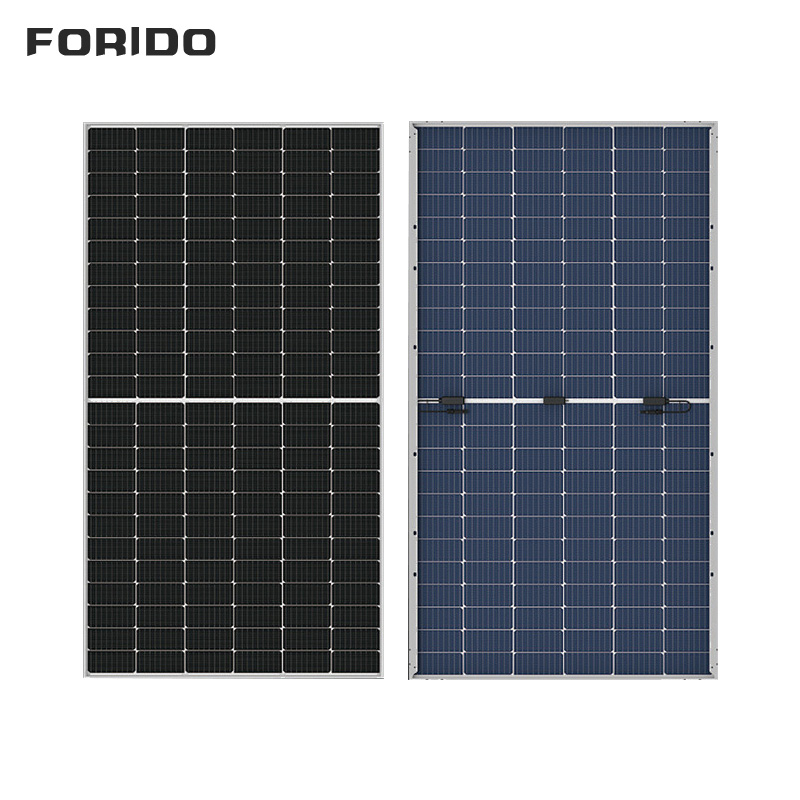

The bifacial solar panel captures sunlight from both front and rear surfaces, boosting energy output by up to 30% compared to traditional single-sided panels. The half-cell structure reduces current loss and improves shading tolerance, ensuring consistent performance even when part of the panel is covered.
Crafted with premium N-type monocrystalline silicon cells, the panel offers higher conversion efficiency, lower degradation rates, and better temperature coefficient than P-type alternatives. This translates to more energy production over the panel’s lifespan, maximizing your investment returns.
Equipped with multi-gate technology, the panel enhances current collection and reduces resistance, further boosting efficiency. The built-in anti-PID guarantee prevents potential-induced degradation, ensuring stable performance for over 25 years and minimizing maintenance costs.
Designed to withstand extreme conditions, the panel features 3.2mm low-iron tempered glass, anodized aluminum alloy frame, and durable TBT backsheet. It boasts a 2400 Pa front load capacity and 5400 Pa rear load capacity, resisting wind, snow, and corrosion for reliable operation in harsh environments.
With strict dimensional tolerances (length: ±2mm, width: ±2mm, thickness: ±1mm), the panel ensures easy installation and compatibility with standard mounting systems. The 0~+3% positive power tolerance guarantees output meets or exceeds rated power, delivering consistent performance as advertised.

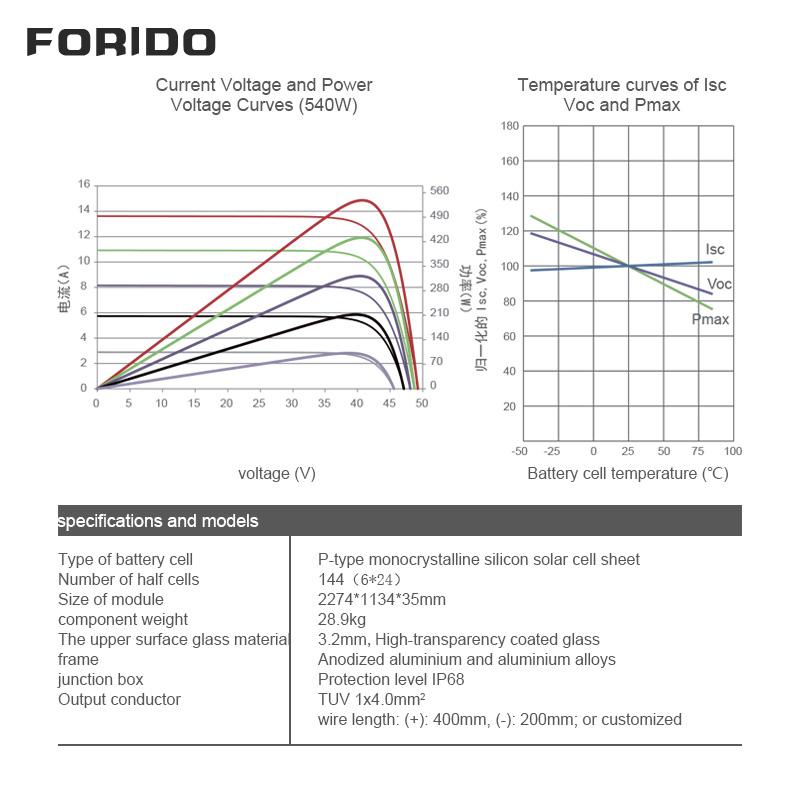

Specification | Details |
Battery Cell Type | P-type monocrystalline silicon solar cell sheet (N-type module integration) |
Number of Half Cells | 144 (6×24) |
Power Range | 530W-550W (0~+3% positive tolerance) |
Module Dimensions | 2274×1134×35mm |
Component Weight | 28.9kg |
Upper Surface Glass Material | 3.2mm High-transparency coated low-iron tempered glass |
Frame | Anodized aluminium and aluminium alloys |
Junction Box | Protection level IP68 |
Output Conductor | TUV 1x4.0mm² wire (positive: 400mm, negative: 200mm; customizable) |
Load Capacity | Front: 2400 Pa; Rear: 5400 Pa |
Key Technologies | Half-cell technology, Multi-gate Technology, Anti-PID Guarantee |
The 530-550W solar module’s high power output and bifacial design make it perfect for utility-scale projects, reducing land usage and installation costs while maximizing energy yield.
Businesses with high energy demands benefit from the panel’s efficiency, offsetting large electricity bills and reducing carbon footprints with minimal rooftop space requirements.
Ideal for areas with reflective surfaces (snow, concrete, or white rooftops), the bifacial design amplifies energy harvest, making it a top choice for regions with varying weather conditions.
With superior heat spot resistance and adaptability to extreme temperatures (-50°C to 100°C), the panel performs reliably in deserts, coastal areas, and cold climates.
The bifacial design captures sunlight from both front and rear surfaces, increasing energy output by up to 30% compared to traditional single-sided panels.
Its power range is 530W-550W with a 0~+3% positive tolerance, guaranteeing output meets or exceeds rated power.
It boasts a front load capacity of 2400 Pa and a rear load capacity of 5400 Pa, resisting wind, snow, and corrosion—ideal for deserts, coastal areas, and cold climates.
N-type monocrystalline cells offer higher conversion efficiency, lower degradation rates, and better temperature coefficients, ensuring more energy production over the panel’s lifespan.
