Available in three models (EA-15, EA-22, EA-30), this compact foldable solar module delivers 15W to 30W of reliable power, featuring adjustable kickstands (60°, 45°, 35°) to maximize sun exposure. Equipped with a compatible MC4 connector and extended charging cable, it seamlessly pairs with power stations, RVs, and portable electronics. With a 22.5% cell efficiency, wide operating temperature range (-10°C~70°C), and one-year warranty, this lightweight portable solar panel is your go-to for camping, hiking, and emergency backup power.
22.5% cell efficiency ensures maximum energy conversion, outperforming polycrystalline alternatives.
PERC solar technology enhances light absorption, delivering consistent power even on cloudy days.
3-angle adjustable kickstands (60°, 45°, 35°) allow precise positioning to capture direct sunlight.
Maximizes power output by up to 20% compared to flat-mounted foldable panels.
Folds into a slim, portable package (e.g., EA-15: 29x18.2x3cm folded) for easy storage in backpacks or vehicle trunks.
Unfolds quickly for instant power—no complex setup required.
Standard MC4 connector ensures compatibility with most solar power stations, inverters, and batteries.
Extended charging cable provides flexibility in placement, keeping devices safe from direct sunlight.
Functions reliably from -10°C to 70°C, adapting to cold mountain trails and hot desert campsites.
Stable temperature coefficients (-0.36%/°C Voc, -0.38%/°C Pmax) minimize efficiency loss in extreme conditions.
Weighs as little as 0.6kg (EA-15), making it easy to carry during long hikes or backpacking trips.
Tear-resistant, weatherproof materials protect against rain, dust, and minor impacts.

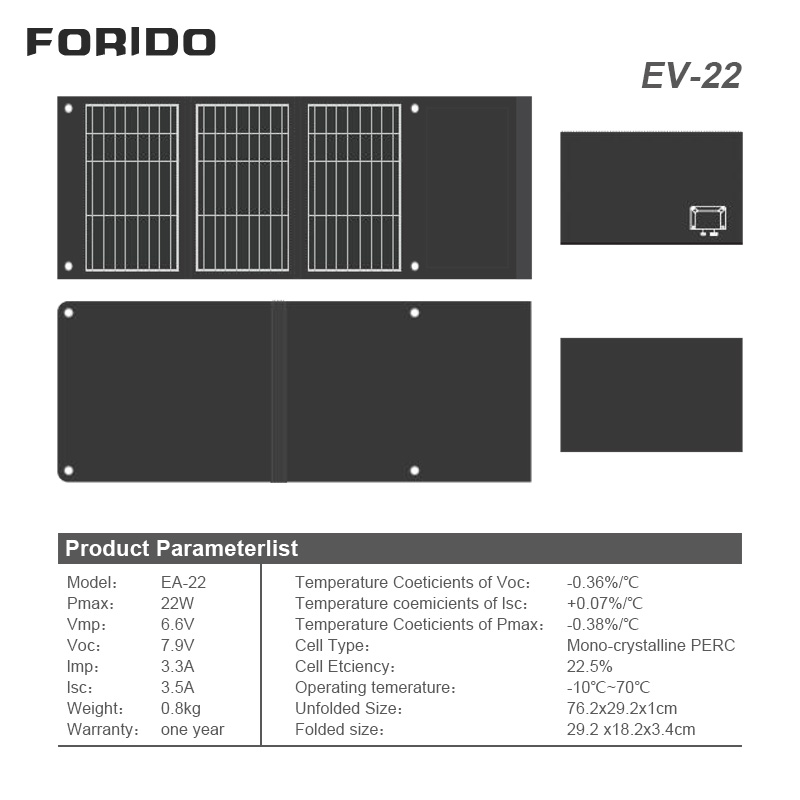

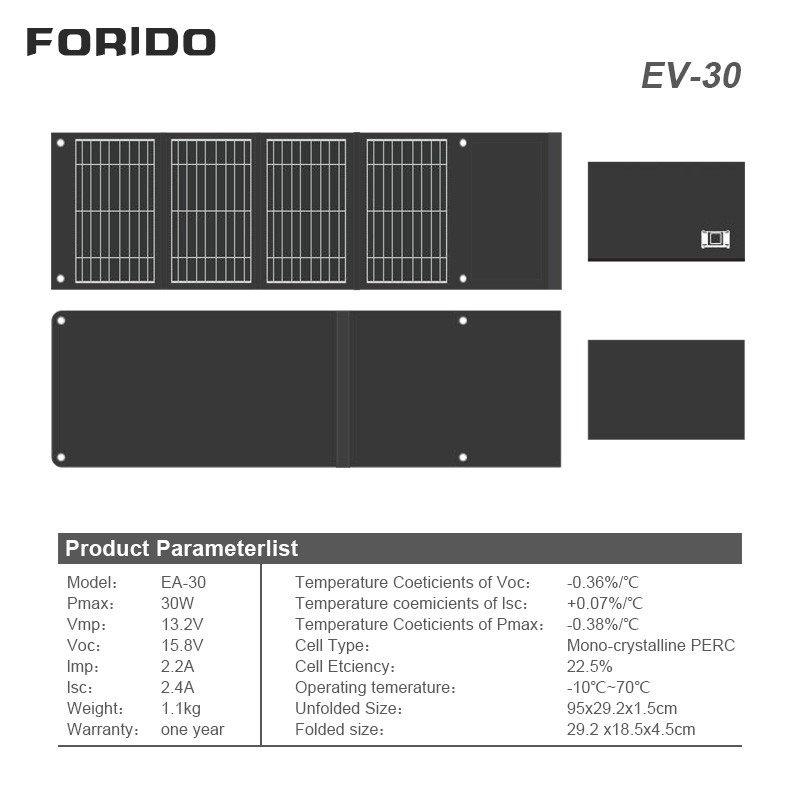

Parameter | EA-15 | EA-22 | EA-30 |
Maximum Power (Pmax) | 15W | 22W | 30W |
Voltage at Max Power (Vmp) | 6.6V | 6.6V | 13.2V |
Open-Circuit Voltage (Voc) | 7.92V | 7.9V | 15.8V |
Current at Max Power (Imp) | 2.2A | 3.3A | 2.2A |
Short-Circuit Current (Isc) | 2.4A | 3.5A | 2.4A |
Cell Type | Mono-crystalline PERC | Mono-crystalline PERC | Mono-crystalline PERC |
Cell Efficiency | 22.5% | 22.5% | 22.5% |
Weight | 0.6kg | 0.8kg | 1.1kg |
Unfolded Size | 58x29x1cm | 76.2x29.2x1cm | 95x29.2x1.5cm |
Folded Size | 29x18.2x3cm | 29.2x18.2x3.4cm | 29.2x18.5x4.5cm |
Operating Temperature | -10°C~70°C | -10°C~70°C | -10°C~70°C |
Temperature Coefficient (Pmax) | -0.38%/°C | -0.38%/°C | -0.38%/°C |
Warranty | 1 year | 1 year | 1 year |
Powers tents, portable fridges, and LED lights—keeping your campsite comfortable and connected.
Supplements onboard power systems, extending battery life for appliances, navigation, and entertainment.
Ideal for small cabins or remote homes, charging phones, laptops, and small electronics without grid access.
Provides critical power during blackouts, natural disasters, or power outages.
Lightweight design adds minimal load, powering GPS devices, cameras, and portable chargers.
Withstands marine environments, charging boat batteries and navigation equipment.
The kickstands offer three adjustable angles (35°, 45°, 60°), allowing precise positioning to capture direct sunlight and maximize power output by up to 20% compared to flat-mounted panels.
Yes. It features a standard MC4 connector, ensuring compatibility with most power stations, inverters, and batteries. It also comes with an extended charging cable for flexible placement.
All models operate reliably from -10°C to 70°C. The lightest model (EA-15) weighs only 0.6kg, making it ideal for backpacking and hiking.
They use monocrystalline PERC cells with a 22.5% efficiency, outperforming polycrystalline alternatives and delivering consistent power even on cloudy days.
