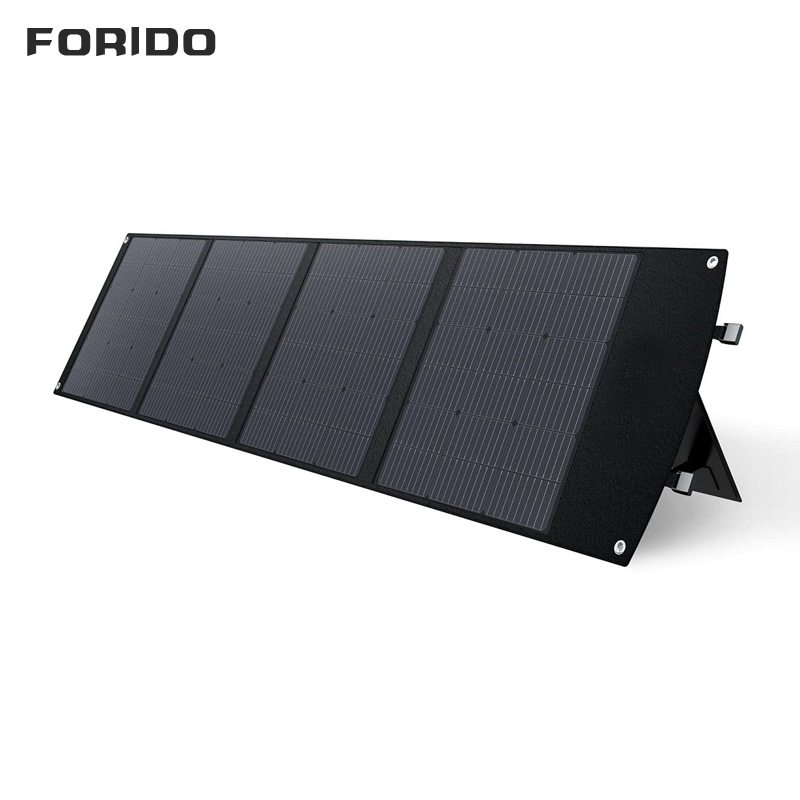

Built with monocrystalline PERC solar cells (22.5% efficiency), this heavy-duty foldable solar module balances portability with performance, making it ideal for off-grid cabins, RVs, and industrial temporary power. Its wide voltage range (18V~19.8V Vmp) supports larger batteries and power stations, while the compact foldable design (e.g., EP-120: 47x43.5x5cm folded) ensures easy transport. With a rugged, weather-resistant build and one-year warranty, this portable high-wattage solar panel delivers reliable power for high-demand applications—from construction sites to remote workspaces.
Ranges from 30W to 120W, catering to diverse needs: from small electronics (EP-30) to large appliances (EP-120).
High-power foldable solar design eliminates the need for multiple panels, simplifying setup.
22.5% cell efficiency maximizes energy conversion, even in low-light conditions.
PERC technology enhances longevity, with stable performance over years of use.
Folds into a manageable size, despite high power output (e.g., EP-100: 47x43.5x4.5cm folded).
Easy to store in RVs, trucks, or storage sheds—no bulky installation required.
Vmp ranges from 18V to 19.8V, compatible with 12V, 24V batteries, and high-capacity power stations.
Ideal for charging large devices, power tools, and industrial equipment.
Thick, tear-resistant fabric and sealed edges protect against rain, dust, and UV radiation.
Reinforced corners and durable hinges withstand frequent folding and transport.
Weighs as little as 1.2kg (EP-30) and up to 4.7kg (EP-120)—portable despite high power.
Ergonomic design makes carrying and deploying simple, even for solo users.

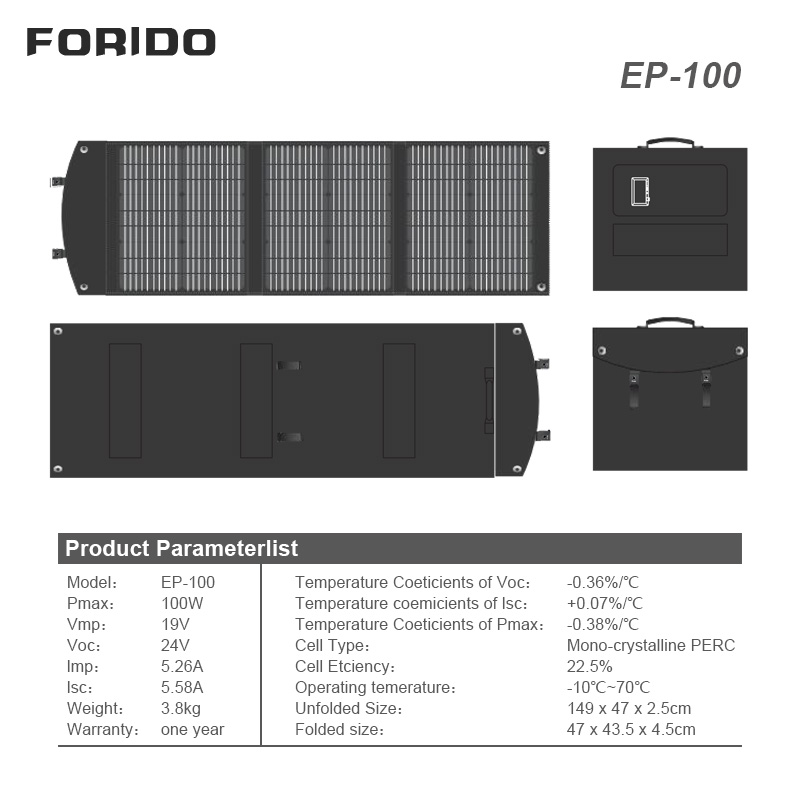

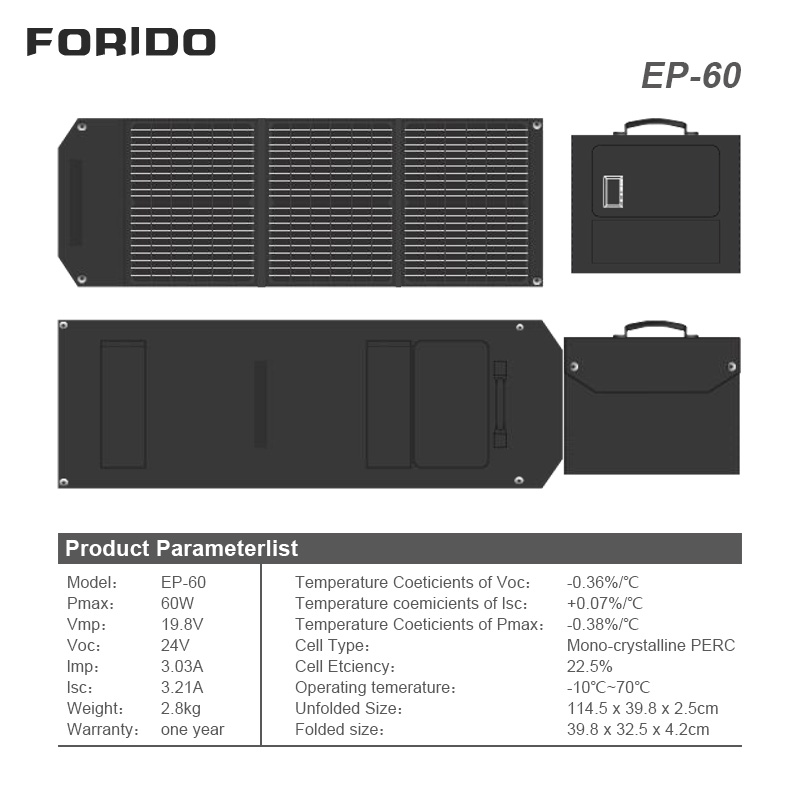

Parameter | EP-30 | EP-60 | EP-100 | EP-120 |
Maximum Power (Pmax) | 30W | 60W | 100W | 120W |
Voltage at Max Power (Vmp) | 18V | 19.8V | 19V | 19V |
Open-Circuit Voltage (Voc) | 22V | 24V | 24V | 24V |
Current at Max Power (Imp) | 1.67A | 3.03A | 5.26A | 6.32A |
Short-Circuit Current (Isc) | 1.77A | 3.21A | 5.58A | 6.7A |
Cell Type | Mono-crystalline PERC | Mono-crystalline PERC | Mono-crystalline PERC | Mono-crystalline PERC |
Cell Efficiency | 22.5% | 22.5% | 22.5% | 22.5% |
Weight | 1.2kg | 2.8kg | 3.8kg | 4.7kg |
Unfolded Size | 76x35x2.5cm | 114.5x39.8x2.5cm | 149x47x2.5cm | 190.5x47x2.5cm |
Folded Size | 35x21x4.5cm | 39.8x32.5x4.2cm | 47x43.5x4.5cm | 47x43.5x5cm |
Operating Temperature | -10°C~70°C | -10°C~70°C | -10°C~70°C | -10°C~70°C |
Temperature Coefficient (Pmax) | -0.38%/°C | -0.38%/°C | -0.38%/°C | -0.38%/°C |
Warranty | 1 year | 1 year | 1 year | 1 year |
Powers refrigerators, heaters, and household electronics—providing full-time off-grid living.
Supports high-demand appliances like air conditioners, microwaves, and washing machines.
Charges large marine batteries, navigation systems, and onboard amenities for long voyages.
Powers tools, lighting, and communication devices in remote construction areas.
Delivers high-wattage support during extended blackouts or natural disasters.
Powers laptops, printers, and satellite internet—enabling productivity in remote locations.
Yes. Its voltage at max power (Vmp) ranges from 18V to 19.8V, making it compatible with both 12V and 24V batteries and high-capacity power stations.
It features a rugged, weather-resistant build with tear-resistant fabric, sealed edges, and reinforced corners, protecting against rain, dust, UV radiation, and minor impacts.
No. It is designed for hassle-free setup—simply unfold it, adjust the position (if needed), and connect it to your device. No professional installation is required.
