▶ Product Introduction

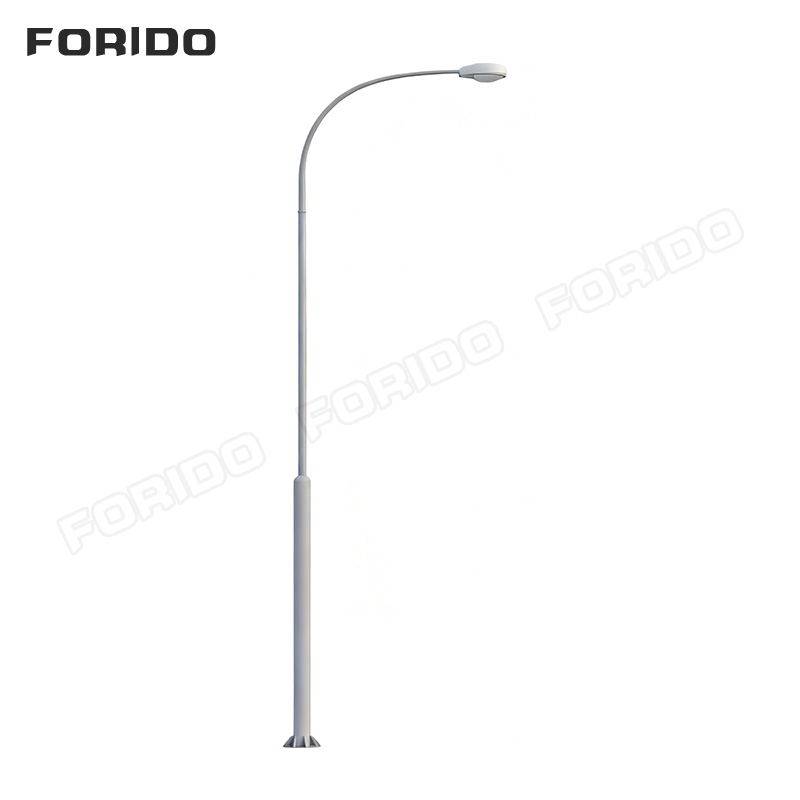

The single-arm LED street lamp is an outdoor lighting device powered by mains electricity. It uses LED as the light source and is equipped with a single suspension pole. It features high efficiency and energy conservation, with uniform lighting. It can reduce light pollution and energy consumption, and supports intelligent control of brightness. The shell is resistant to corrosion and waterproof, and is suitable for various scenarios such as urban roads and parks.
▶Product Advantage
1. Ultra-high Energy Efficiency: Utilizing high-efficiency LED light sources with a luminous efficacy of over 130lm/W, it is 60% more energy-efficient than traditional sodium lamps. The power supply system is stable and can output a steady supply of electricity. The annual power consumption of each lamp is only 80-120 kWh, significantly reducing the cost of municipal lighting electricity.
2. Ultra-long Lifespan: Both the light source and the driving power supply use industrial-grade components, with an overall lifespan exceeding 50,000 hours, which is three times that of traditional street lamps. The average failure interval time (MTBF) exceeds 30,000 hours, reducing the maintenance frequency of single-arm LED street lights.
3. Intelligent Dimming Control: Supports multiple dimming protocols such as 0-10V/DALI/RS485, and can automatically adjust brightness according to time periods and traffic flow. During the low-peak hours at night, the power can be reduced to 30% to further save energy, meeting the upgrade requirements of smart city lighting systems.
4. High Protection and Durability: The lamp body is made of ADC12 die-cast aluminum material, with the surface treated by electrostatic spraying. The protection level reaches IP66, resistant to corrosion and 12-level typhoons. The lens is made of high-transparency PC material, with a light transmittance of over 93%, suitable for harsh outdoor environments.
5. Optimized Optical Design: Adopting a bat-wing type light distribution curve, the uniformity of illumination is ≥0.7, without glare or double images. The effective illumination width on the road surface reaches 12-18 meters. Precise control of the light angle reduces light pollution and enhances road lighting safety.
▶Product Uses

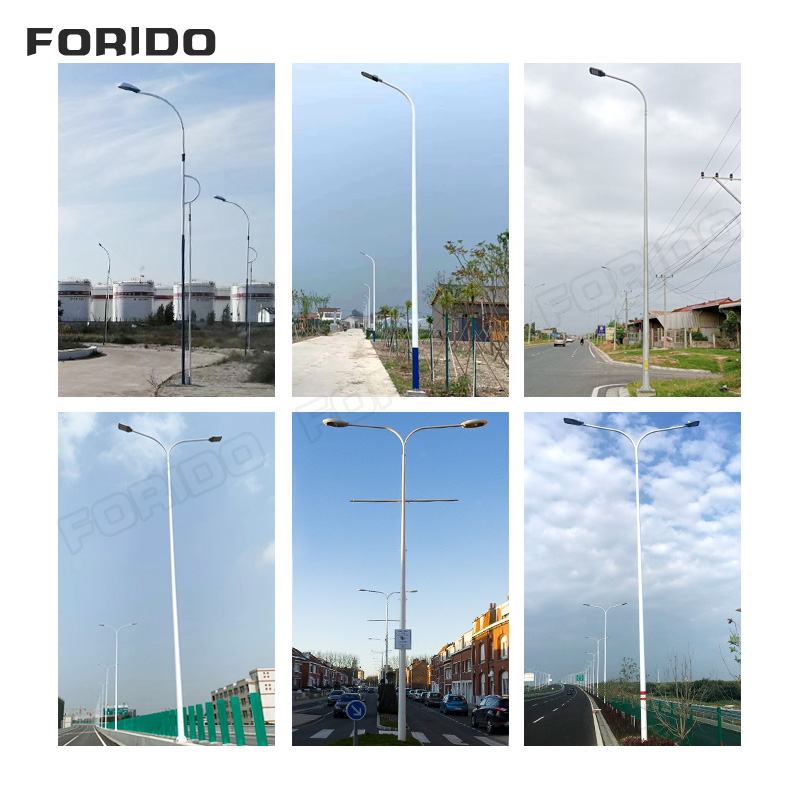

1. Main roads and secondary roads in cities: Suitable for 2-4 lane lighting in both directions. The single-arm design does not obstruct traffic signs. The illumination coverage width is 12-18 meters, meeting the safety requirements for night driving on urban roads. It is the core choice for municipal lighting renovation.
2. Rural roads and village roads: Wide voltage power supply is compatible with fluctuations in rural power supply. IP66 protection can cope with rainy and dusty environments. No complex maintenance is required, effectively improving the night traffic and security level in rural areas.
3. Industrial park roads: Can withstand a temperature range of -30°C to 60°C, resist typhoons of level 12, compatible with high lighting requirements for park trucks, and support intelligent dimming to reduce the energy cost of the park at night.
4. Park and scenic area footpaths: Anti-glare design (UGR ≤ 19) avoids disturbing tourists' vision. The lightweight single-arm does not disrupt the harmony of the landscape. The warm light version can also create a comfortable night tour atmosphere.
5. Campus and community roads: Class II anti-electrocution design ensures pedestrian safety. The power can be reduced to 30% at night for energy saving. It takes into account the lighting needs of students during evening study and residents returning at night, as well as the control of community electricity costs.
▶Product Operate Guide
1. Fix the lamp pole: Vertically fix the lamp pole on the pre-prepared foundation and tighten the anchor bolts;
2. Install the lamp: Fix the LED lamp on the single-arm bracket and connect the power cord;
3. Wiring and debugging: Connect the power cord to the mains power supply, check that the wiring is correct, then turn on the power and adjust the brightness and angle of the lamp;
4. Acceptance inspection: Confirm that the lamp pole is stable and the lamp is functioning properly, and complete the installation.
