▶ Product Introduction
1. Unique Design and Wide-Angle Lighting
The flyer-shaped lamp disc has a novel design and high recognizability, adding modern technological feel to the space. Its wide-angle illumination design ensures uniform light distribution and reduces light spot overlap, making it suitable for large-scale lighting areas such as squares and stadiums.
2. Efficient Maintenance and Safety

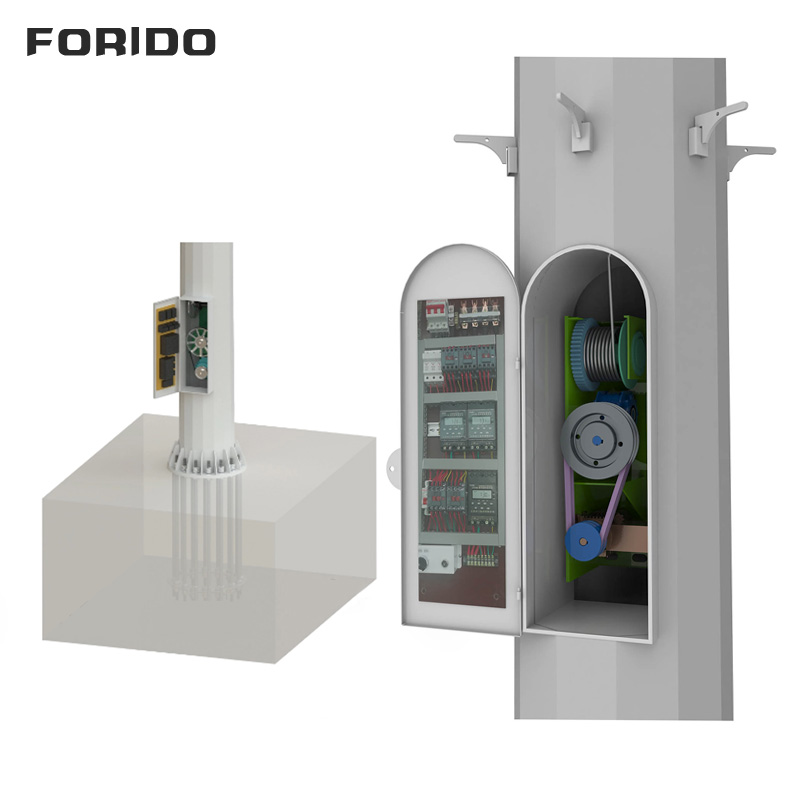

The lamp pole lights with electric or manual lifting systems have lamp discs that can be lowered to a height of 2.5 meters, facilitating light source replacement and line maintenance without the need for high-altitude work, reducing maintenance risks and improving efficiency.
3. Energy-saving and Long Lifespan
The high pole lights use LED light sources, which have uniform light distribution, high brightness, and an efficiency of over 130lm/W, saving energy and electricity. They have a high color rendering index, good color reproduction, and a long lifespan, reducing energy consumption and maintenance costs.
4. Stable Structure and Corrosion Resistance
The lamp poles and components are treated with hot-dip galvanizing and spray painting for corrosion resistance. The lamp disc frame and main pole of the high pole lights use high-quality Q235 steel to ensure corrosion resistance and structural strength, suitable for various harsh environments.
5. Intelligent Control and Management
Supports remote control, automatic dimming, and light sensing functions. It can automatically adjust brightness according to environmental illuminance, achieving intelligent management. Some products support time-based dimming, further reducing energy consumption.
6. Wide Applicable Scenarios
Suitable for various scenarios such as large urban squares, stations, airports, docks, highways, stadiums, parks, and more. Its unique design and excellent lighting effect meet the needs of different places, enhancing the city image and night economic vitality.

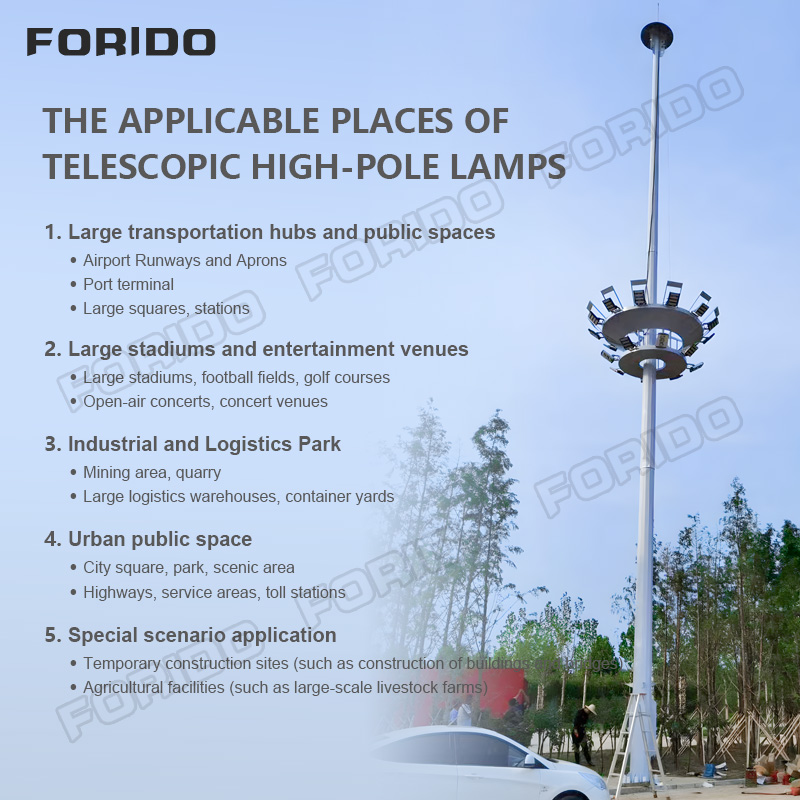

▶ Product Uses
1. Lighting for Large Transportation Hubs
The elevating disc-shaped light pole lamp is suitable for large transportation hubs such as airports, ports, and railway stations. Its lamp disc can be raised to the ground for maintenance, reducing the risk of high-altitude work; equipped with efficient LED light sources, it has a wide illumination range and uniform light, ensuring safety during nighttime operations. The intelligent control system supports remote dimming, adapting to different traffic flow demands at different times, and its anti-wind and anti-seismic design guarantees stability in adverse weather conditions.
2. Sports Venues and Event Sites
In sports venues like football fields and golf courses, the elevating high pole lamp can achieve precise lighting layout by adjusting the height and angle of the lamp disc, avoiding glare interference. Its disc-shaped lamp design optimizes light distribution, enhancing the visual experience of spectators. The electric lifting function facilitates quick maintenance before events, and the IP65 protection level ensures normal operation in rainy and snowy weather.
3. City Squares and Public Spaces
Public areas such as city squares and pedestrian streets need to balance lighting effect and aesthetics. The elevating high pole lamp adopts a streamlined lamp pole and disc-shaped lamp, integrating with the urban landscape; the lamp disc can be lowered to the ground for cleaning and maintenance, reducing operation costs. The intelligent sensing system automatically adjusts brightness according to the number of people, achieving energy conservation while creating a comfortable nighttime environment.
4. Industrial Parks and Logistics Centers
Large industrial parks and logistics warehouses have high ceilings, making traditional lamps difficult to cover. The elevating disc-shaped light pole lamp with a design of over 18 meters in height can achieve unobstructed lighting in spaces ranging from 6 to 20 meters in height. The aluminum-magnesium alloy heat dissipation structure ensures stable operation for a long time, and the wide voltage input is compatible with complex power grid environments, improving warehouse operation efficiency.
5. Highways and Overpasses
Highways with ramps and overpasses require long-distance, high-brightness lighting to ensure safe driving. The elevating high pole lamp supports a 45-meter-per-second anti-wind design, and the lamp disc can be lowered to the ground to replace the light source, avoiding traffic disruptions. Its concentrated light source and a 130-meter illumination radius reduce the number of lamp poles and optimize the road landscape.
6. Special Environment Emergency Lighting
Special environments such as petrochemical areas and explosion-proof places have strict requirements for lighting equipment. The elevating disc-shaped light pole lamp can be equipped with explosion-proof lamps, and is paired with a manual + electric dual-mode lifting system to ensure rapid maintenance in emergency situations. The lightning protection device at the top of the lamp pole and the IP67 protection level adapt to extreme conditions such as high temperatures and humidity, ensuring continuous lighting.

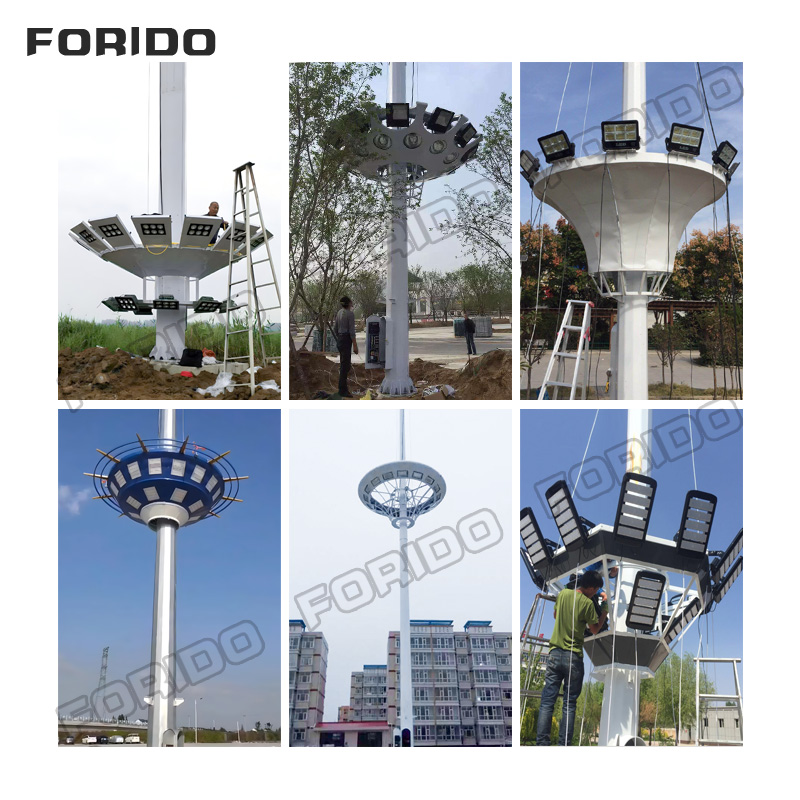

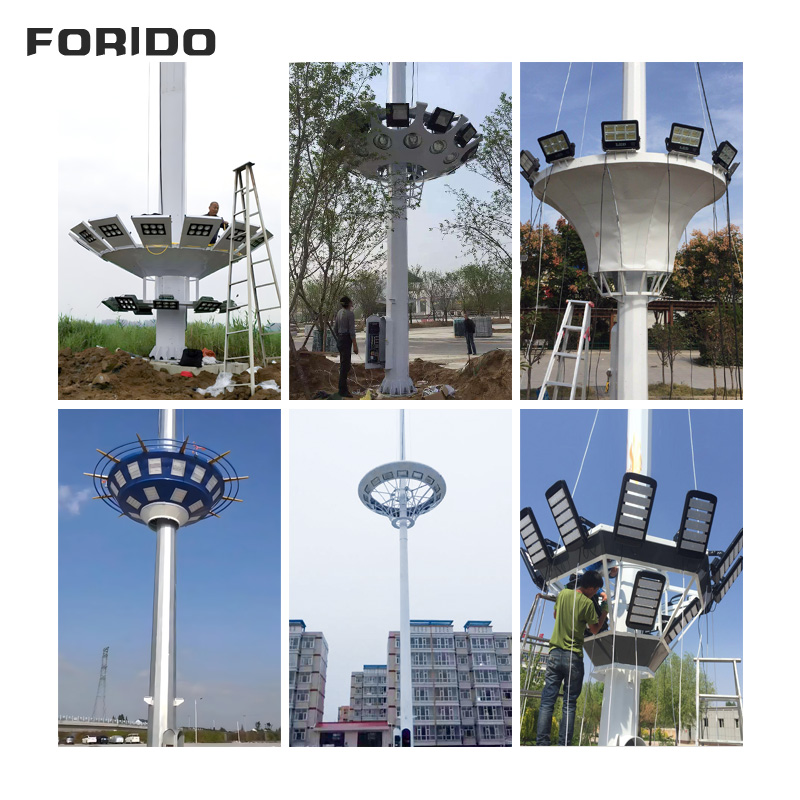

▶ Product Operate Guide
Foundation preparation: Clean the concrete foundation, check the spacing of the embedded bolts, and ensure the pole body is undamaged.
Pole body connection: Use a sling to lift the pole body, and the connection depth should be greater than 50cm.
Rope and cable threading: Insert the main steel rope and cable, and ensure a secure connection.
Head installation: Install the rain cover and lightning rod, and connect the jumper wire.
Hoisting and lamp plate installation: Vertically lift the pole body, adjust the gap of the lamp plate, and tighten the fixing bolts.
Lamp debugging: Install the lamp and connect the wires, conduct a 24-hour test with the lamp on.
▶ FAQ
Q: How canI pay my order?
A: We accept T/T,Western Union,Alibaba Online Payment to pay.
Q: Do you have any certificate?
A: We have passed 1SO9001:2008, 1SO14001, OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market,it may be indeed possilble that some machine models are simlar as others. Whatwe may think is that the machine model does not make big diference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: How about your warranty?
A: Our warranyis 12 months. Normaly, the general after-sale service may be as below.
1) The technical support is permanent.
2) The paid spares parts could be provided at any time,
3) We have dealers in some countries to offer compensable service.
