▶ Product Introduction

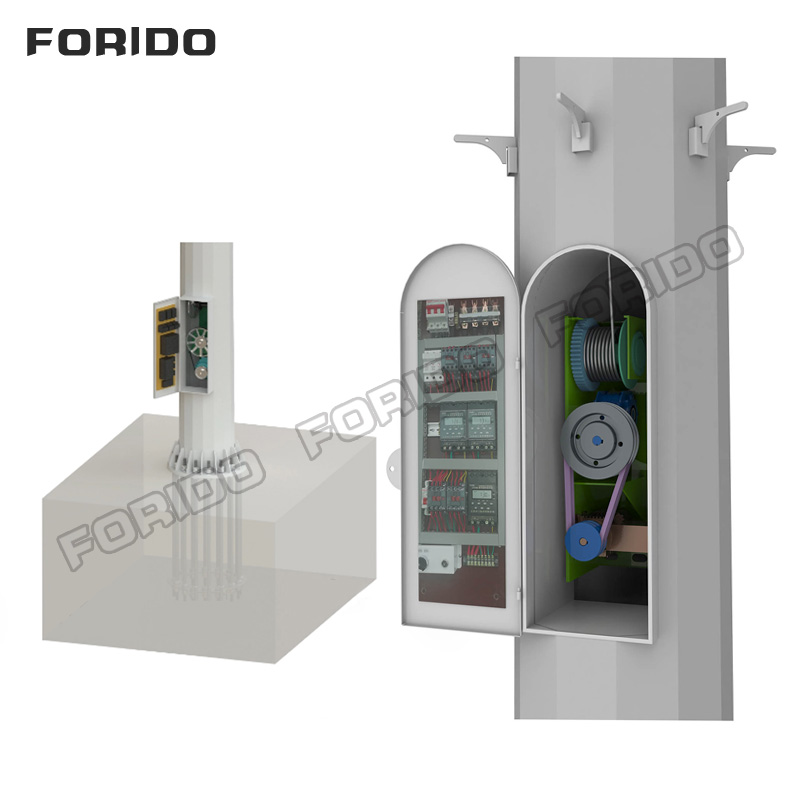

1. Convenient Maintenance with Elevating System
High pole lights equipped with electric or manual elevating systems can lower the lamp disc to a height of 2.5 meters above the ground. Thus, the replacement of the light source, line maintenance, and other operations can be completed without the need for high-altitude work. For example, after Nanjing Lukou Airport adopted such high pole lights, the maintenance efficiency increased by 60%, while reducing the risk of falling from heights and ensuring personnel safety.
2. Optimal Optical Design of the Fan-shaped Lamp Disc
The fan-shaped structure expands the illumination range, reduces light spot overlap, and improves the uniformity of light distribution by 40%. The lamp disc angle can be adjusted, supporting 0° - 15° pitch adjustment, precisely matching the requirements of sports venues, squares, etc. For instance, in Hangzhou Xiaoshan Airport, the uniformity of runway lighting reached 98% after application.
3. Intelligent Control System
High pole lights integrated with remote control, automatic dimming, and light sensing functions can automatically adjust brightness according to environmental illuminance. For example, a commercial area project in Shijiazhuang achieved a holiday lighting show mode through intelligent control, reducing energy consumption by 30% while increasing night-time passenger flow by 25%.
4. Stable Structure and Safety Design
Made of high-quality Q235 steel plates, the 12-angled conical pole body has a wind resistance capacity of 60 meters/second (equivalent to a 17-level typhoon) and an earthquake resistance strength of 8 degrees. It is equipped with anti-fall devices, over-torque protection, and dual limit switches.
5. Energy-saving and Environmental Performance
Supporting LED light source replacement, the power consumption of a single lamp has decreased from 1000W to 240W, and the lifespan has increased to 50,000 hours. Combined with time controllers to achieve time-based dimming, a certain square case achieved an annual energy savings of 12,000 kWh, reducing carbon emissions by 9.6 tons.

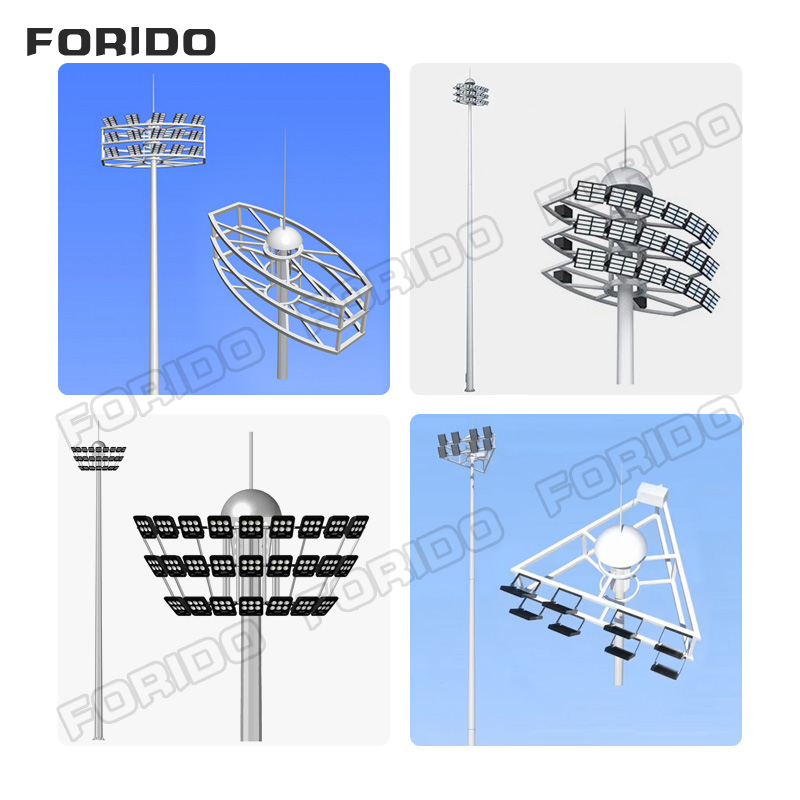

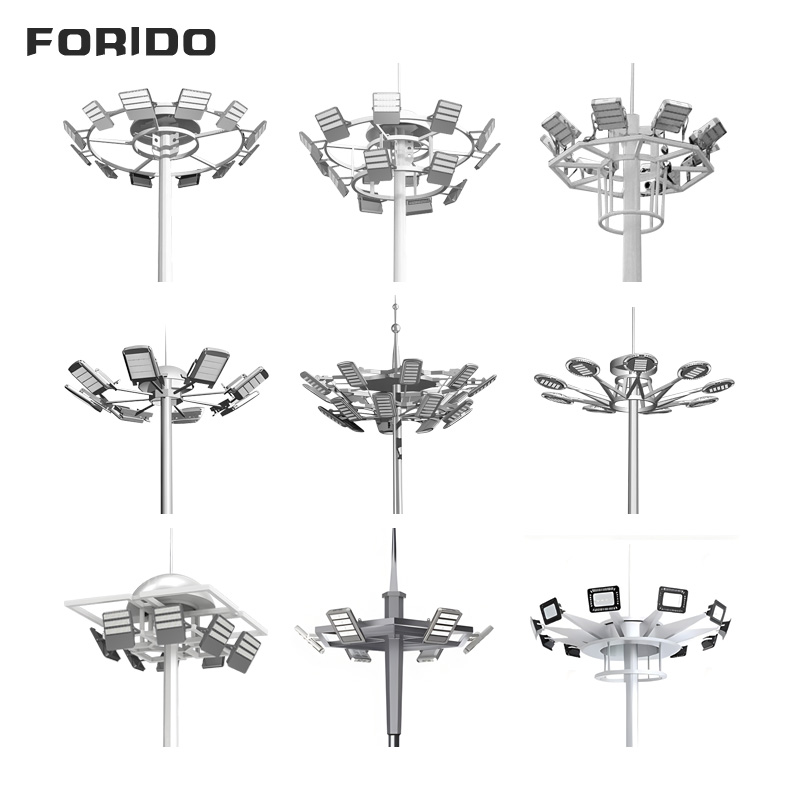

6. Flexibility in Scene Adaptation
The diameter of the lamp disc, height (15 - 40 meters), and power (6 - 24 lamps) can all be customized, suitable for stadiums, airports, ports, etc. For example, the 25-meter elevating high pole light used at Hefei Airport illuminated an area of 8,000 square meters, meeting the lighting standards for large aircraft takeoff and landing.
▶ Product Uses
1. Large transportation hubs and public spaces: airport runways and aprons; port terminals; large squares, stations
2. Large sports venues and entertainment venues: large stadiums, football fields, golf courses; open-air concert and performance venues
3. Industrial and logistics parks: mining areas, quarries; large logistics warehouses, container yards
4. Urban public spaces: city squares, parks, scenic spots; expressways, service areas, toll stations
5. Special scene applications: temporary construction sites (such as building construction, bridge construction); agricultural facilities (such as large-scale livestock farms)
▶ Product Operate Guide
Installation steps for high-pole lamps: First, clean the concrete foundation and check the spacing of the embedded bolts to ensure that the pole body is undamaged. Then, use a lifting strap to lift the pole body, and the insertion depth should be greater than 50 cm. Next, insert the main steel rope and cable, and ensure a firm connection. Then install the rain cover and lightning rod, and connect the cross-connection wire. Vertically hoist the pole body, adjust the gap between the lamp panels and tighten the fixing bolts. Install the lamps and connect the wires, and conduct a lighting test.
▶ FAQ
Q: How canI pay my order?
A: We accept T/T,Western Union,Alibaba Online Payment to pay.
Q: Do you have any certificate?
A: We have passed 1SO9001:2008, 1SO14001, OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market,it may be indeed possilble that some machine models are simlar as others. Whatwe may think is that the machine model does not make big diference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: How about your warranty?
A: Our warranyis 12 months. Normaly, the general after-sale service may be as below.
1) The technical support is permanent.
2) The paid spares parts could be provided at any time,
3) We have dealers in some countries to offer compensable service.
