▶ Product Advantage

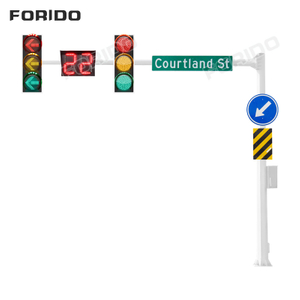

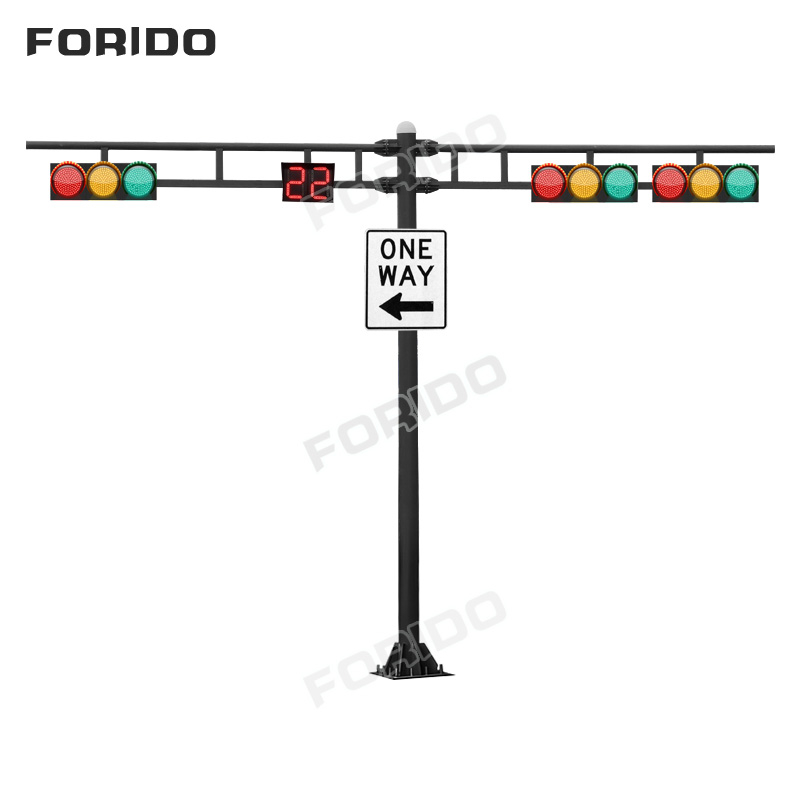

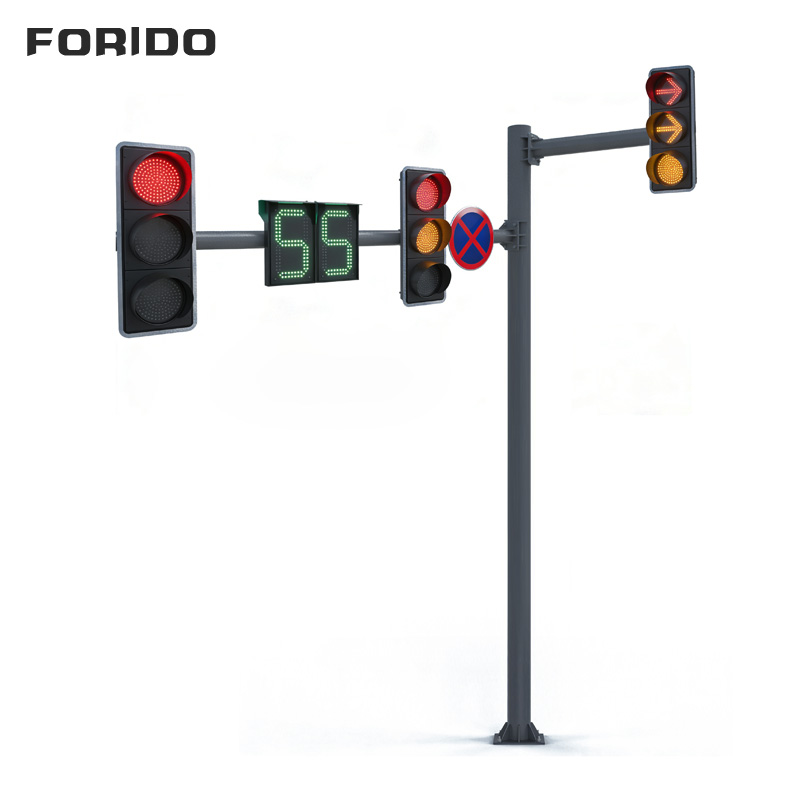

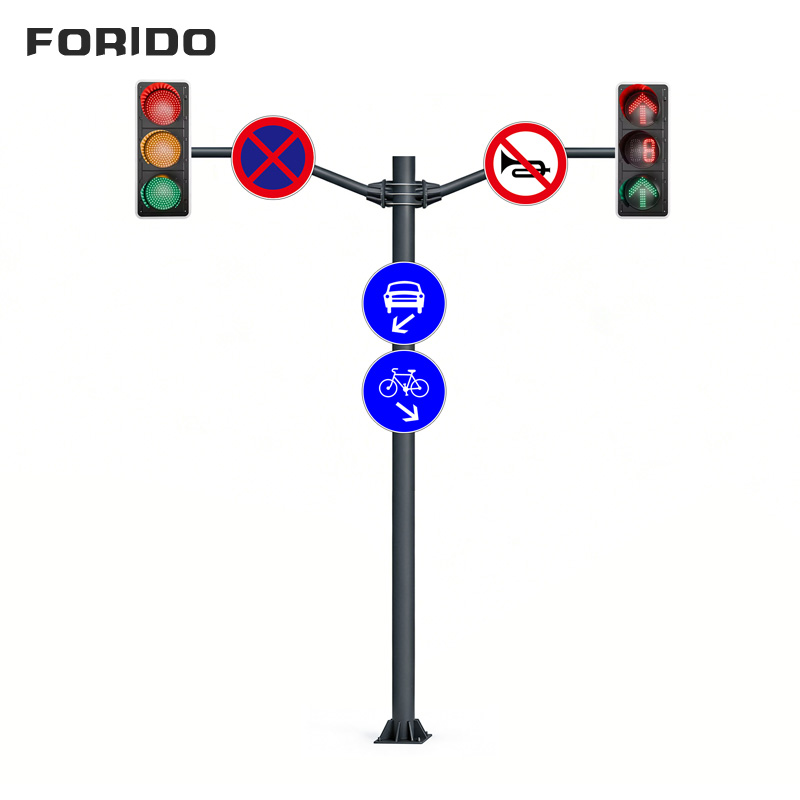

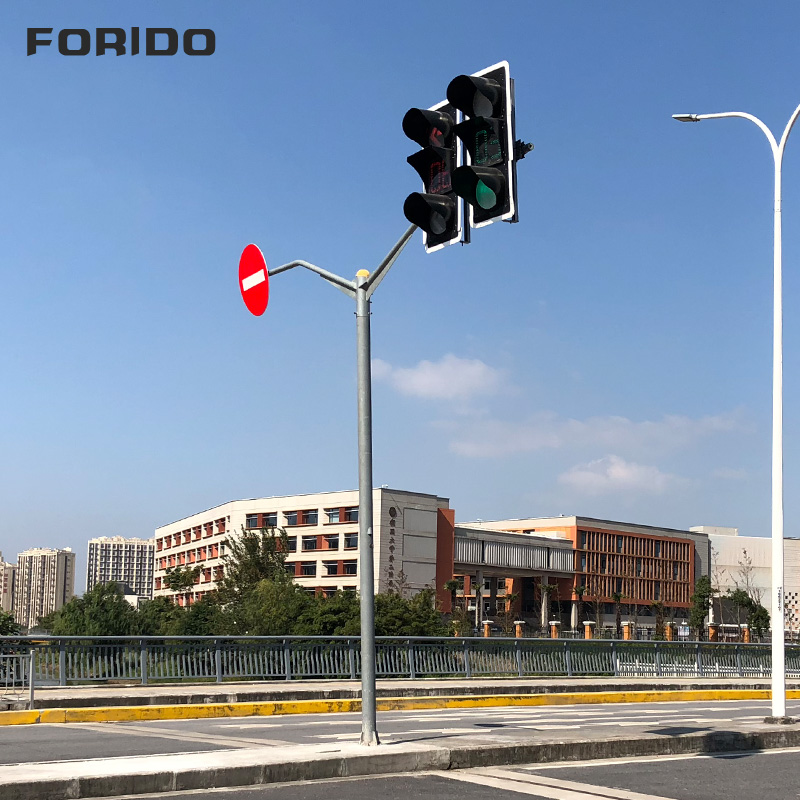

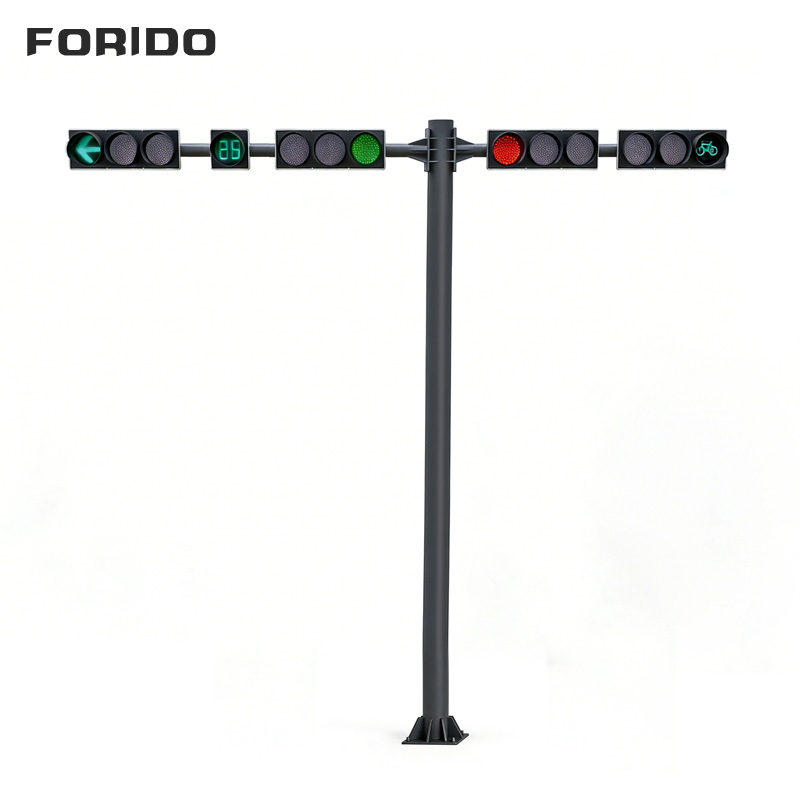

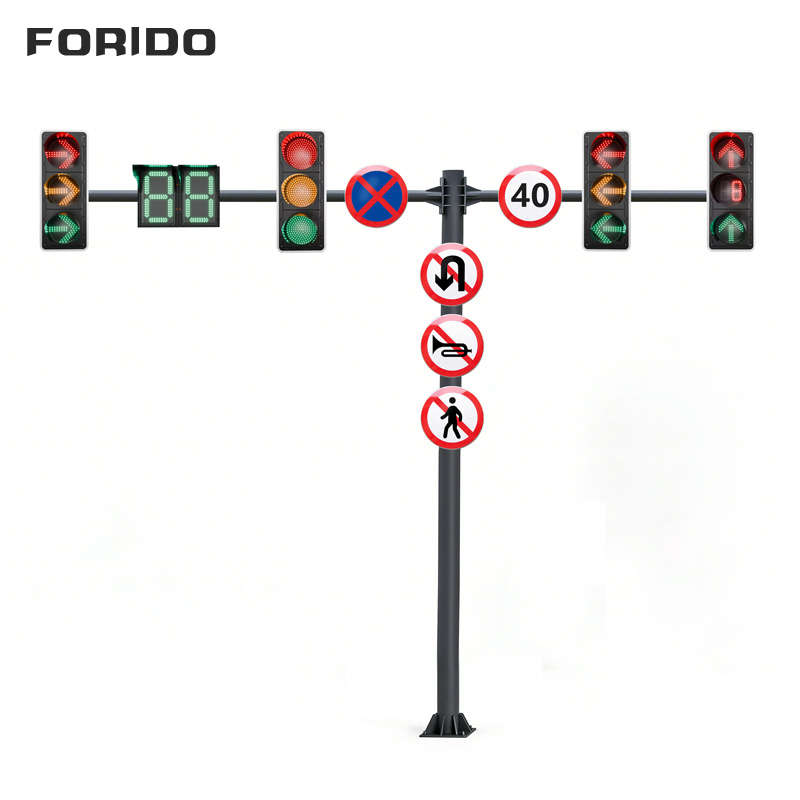

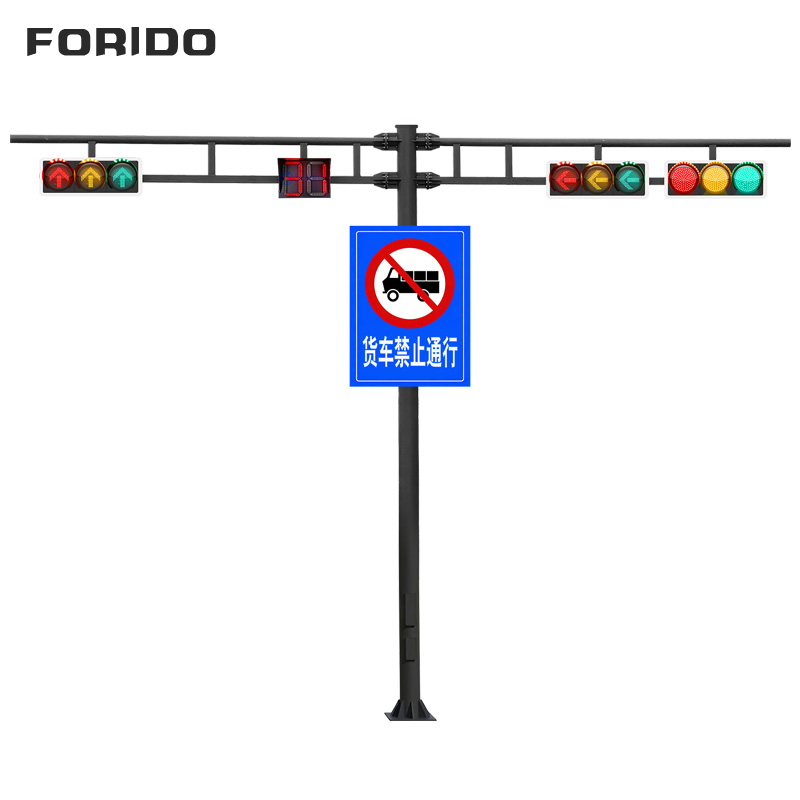

Advantages and Features of T-Beam Double Suspension Signal Lights:
High-strength material, durable: Made of Q355B high-strength steel, with the pole wall thickness ranging from 8 to 12mm and the double suspension wall thickness ranging from 6 to 10mm. The structure is formed through CNC bending and welded parts undergo flaw detection. The hot-dip galvanized layer thickness is ≥85μm, the surface spray coating thickness is ≥60μm, with excellent corrosion resistance and a service life of 25 years. It can withstand 14-level strong winds and is suitable for various complex climates.
Double suspension structure, wide coverage: The double suspension length can be customized from 3 to 15 meters, and the spacing can be adjusted. Each set of suspension can install 3 to 5 sets of signal lights. Compared with single suspension, the lateral coverage range of the intersection is increased by more than 60%, capable of guiding multiple lanes and directions of traffic flow, especially suitable for large intersections with widths exceeding 30 meters.
High-brightness signals, clear display: Equipped with imported 3528 type LED lamp beads, with red light brightness ≥6000mcd and green light ≥8000mcd, with a light transmittance of 92%. It supports automatic light sensing adjustment. In daylight, the visible distance is ≥300 meters. In low-light mode at night, it avoids glare and the signal penetration power is increased by 40% in rainy, foggy, and cloudy weather. The signal light can operate stably in environments ranging from -40℃ to 70℃. It is resistant to rain, dust, and salt fog, and can operate reliably in special areas such as coastal and plateau regions.
Intelligent adaptation, easy installation: Compatible with mainstream traffic signal control systems such as SCATS and SCOOT, and supports 4G/5G wireless communication. Modular design allows for installation by first fixing the pole components and then mounting the signal lights. A single person can complete the entire installation within 4 hours, and the efficiency of maintenance and component replacement is increased by 50% in the future.
Energy-saving and stable, low operation and maintenance costs: Each set of signal lights has a power of ≤15W, which is 70% more energy-efficient compared to traditional light sources. It is equipped with an intelligent fault detection module that can monitor voltage, current, and lamp bead status in real time. When an anomaly occurs, it automatically alarms. The annual failure rate is ≤0.5%, significantly reducing the labor cost for operation and maintenance.
▶ Product Uses
The T-shaped double-arm signal lights are applicable in the following scenarios:
1. Large intersections: When the intersection width exceeds 30 meters, the double-arm can cover multiple lanes on both sides and guide the straight, left-turn, and right-turn traffic flows, avoiding the blind area covered by a single-arm signal, thereby improving traffic efficiency.
2. Urban expressway entrances and exits: Installing them here can separately control the traffic flows of the main road and the auxiliary road, and in combination with the intelligent control system, it can cope with the tidal traffic during morning and evening rush hours, reducing congestion.
3. Around transportation hubs: Such as railway stations and bus stations, the double-arm can simultaneously indicate motor vehicles, non-motor vehicles, and pedestrians, coordinating the complex traffic flow and ensuring the order of the hub.
4. Main roads in industrial parks: With a large number of heavy trucks and wide intersections, the double-arm's high-strength material and wide coverage can adapt to the complex environment of heavy-load vehicle traffic, and stably guide the traffic.
5. New urban expansion areas: Newly built wide roads are equipped with them. The double-arm can adjust the signal light groups according to the future growth of traffic flow, meeting the long-term planning requirements and reducing redundant construction.
▶ Product Operate Guide
Installation method of T-shaped double-arm signal lights:
Foundation construction: Pour concrete base, pre-embed fixed bolts to ensure perpendicularity to the ground.
Rod installation: Lift the T-shaped upright pole and fix it to the base, then install the double-arm, adjust the level.
Equipment erection: Fix the signal light group to the arm, connect the lines and perform waterproof treatment.
Commissioning and operation: Connect the power supply, test signal switching and brightness, and complete the work after confirming normal operation.
▶ FAQ
Q: How canI pay my order?
A: We accept T/T,Western Union,Alibaba Online Payment to pay.
Q: Do you have any certificate?
A: We have passed 1SO9001:2008, 1SO14001, OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market,it may be indeed possilble that some machine models are simlar as others. Whatwe may think is that the machine model does not make big diference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: How about your warranty?
A: Our warranyis 12 months. Normaly, the general after-sale service may be as below.
1) The technical support is permanent.
2) The paid spares parts could be provided at any time,
3) We have dealers in some countries to offer compensable service.
